Open-pit mining environments impose the most punishing operating conditions on outdoor electrical infrastructure anywhere on earth. Continuous high-amplitude ground vibration from heavy 100-ton haul trucks, abrasive airborne mineral dust, steep mountain switchbacks, and severe sub-zero winter freeze-thaw cycles rapidly destroy conventional commercial-grade luminaires. When international mining operators and EPC infrastructure contractors select a solar street light for mining projects, off-the-shelf residential or urban streetlights are guaranteed to fail within months.

Under the technical execution framework of Contract Ref: MCL-GEO-20260812, MCL Solar engineered and delivered 30 complete sets of the MCL-120W-1280WH heavy-duty split-type industrial solar lighting system for an open-pit gold and copper mining facility situated in the rugged Caucasus mountain terrain of Georgia. Designed for 6-meter to 9-meter heavy stanchion mounting, this case study documents how in-house calibrated 208.96 lm/W optical engines, oversized 250W monocrystalline PV arrays, high-voltage 25.6V Grade-A LiFePO4 storage, and multi-stage dynamic MPPT algorithms deliver continuous 365-night operational illumination in extreme industrial mining zones.

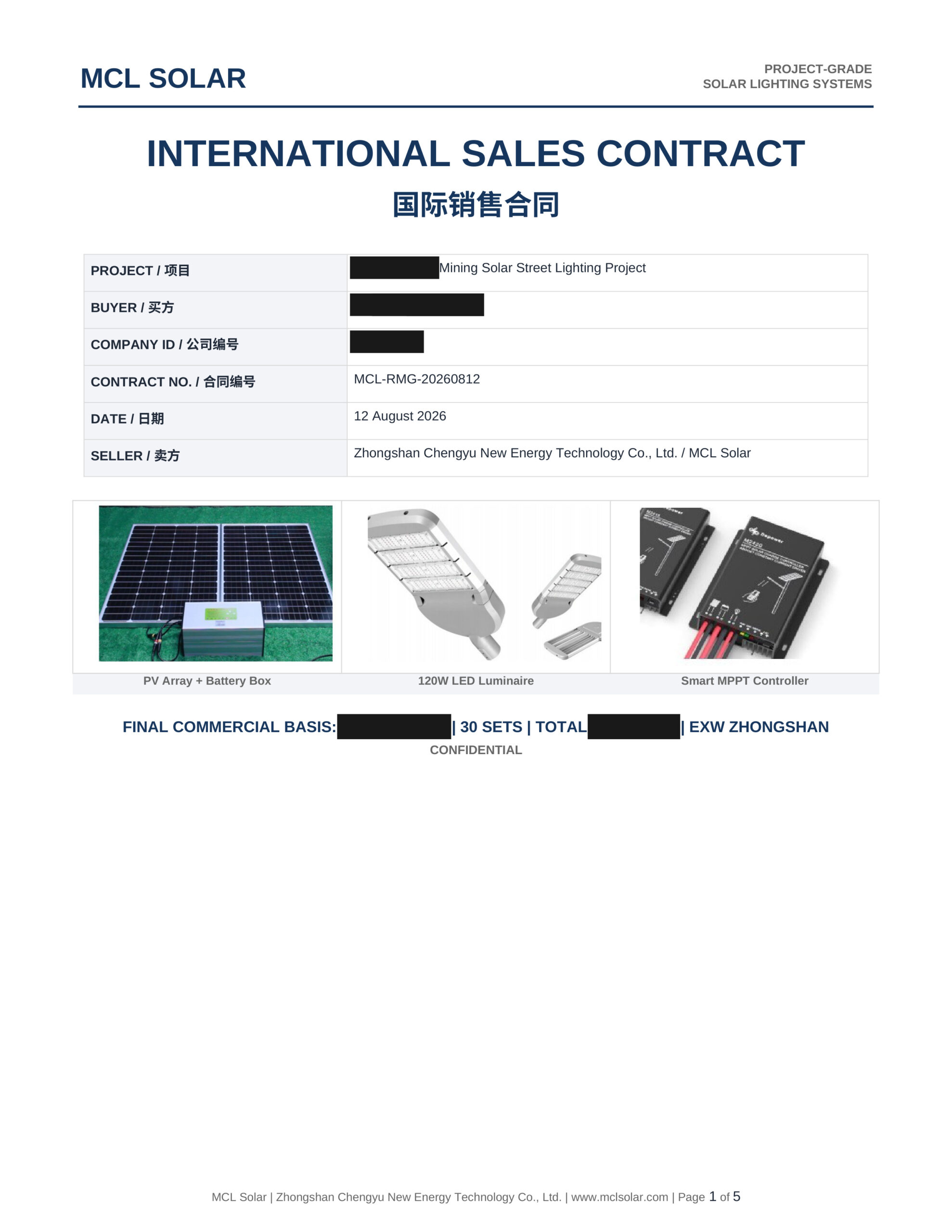

Figure 1: Official International Sales Contract (Ref: MCL-GEO-20260812) executing the supply of 30 sets of heavy-duty industrial split solar street lighting systems for the Georgia open-pit mining facility (buyer corporate details and commercial pricing 100% redacted for institutional confidentiality).

1. Engineering Challenges: Why Standard Solar Lights Fail in Open-Pit Mining

Mining access corridors, haul roads, processing plant bypasses, and security perimeters present severe mechanical and environmental hazards that require purpose-built industrial engineering:

• Severe Heavy-Haul Mechanical Vibration: Loaded 100-ton to 250-ton mining dump trucks (such as Caterpillar 777 or Komatsu HD785) generate relentless low-frequency ground vibrations and road-surface shock waves. In commercial all-in-one lights, these continuous vibrations cause cold solder joint fractures on LED drivers, shear internal battery wire leads, and shake loose plastic lens clips.
• Abrasive Mineral Dust & Slurry Deposition: Active open-pit excavation creates dense particulate clouds consisting of quartz, copper ore, and pulverized rock dust. Fine abrasive particles penetrate standard IP65 housing seals, abrade optical polycarbonate lenses, and form an insulating silt crust over thermal heat sinks, precipitating catastrophic thermal runaway.
• Sub-Zero Caucasus Mountain Freezing (-20°C): Standard 3.2V commercial LiFePO4 battery cells suffer severe chemical polarization when temperatures drop below 0°C. Attempting to charge frozen lithium cells induces metallic lithium plating (dendrite formation), triggering internal short circuits and permanent cell death.
• Prolonged Winter Cloud Cover & Snow Loads: Caucasus mountain winters feature extended periods of overcast skies, freezing rain, and heavy snowfall, requiring oversized solar harvesting capacity and steep panel tilting angles to ensure continuous off-grid autonomy.

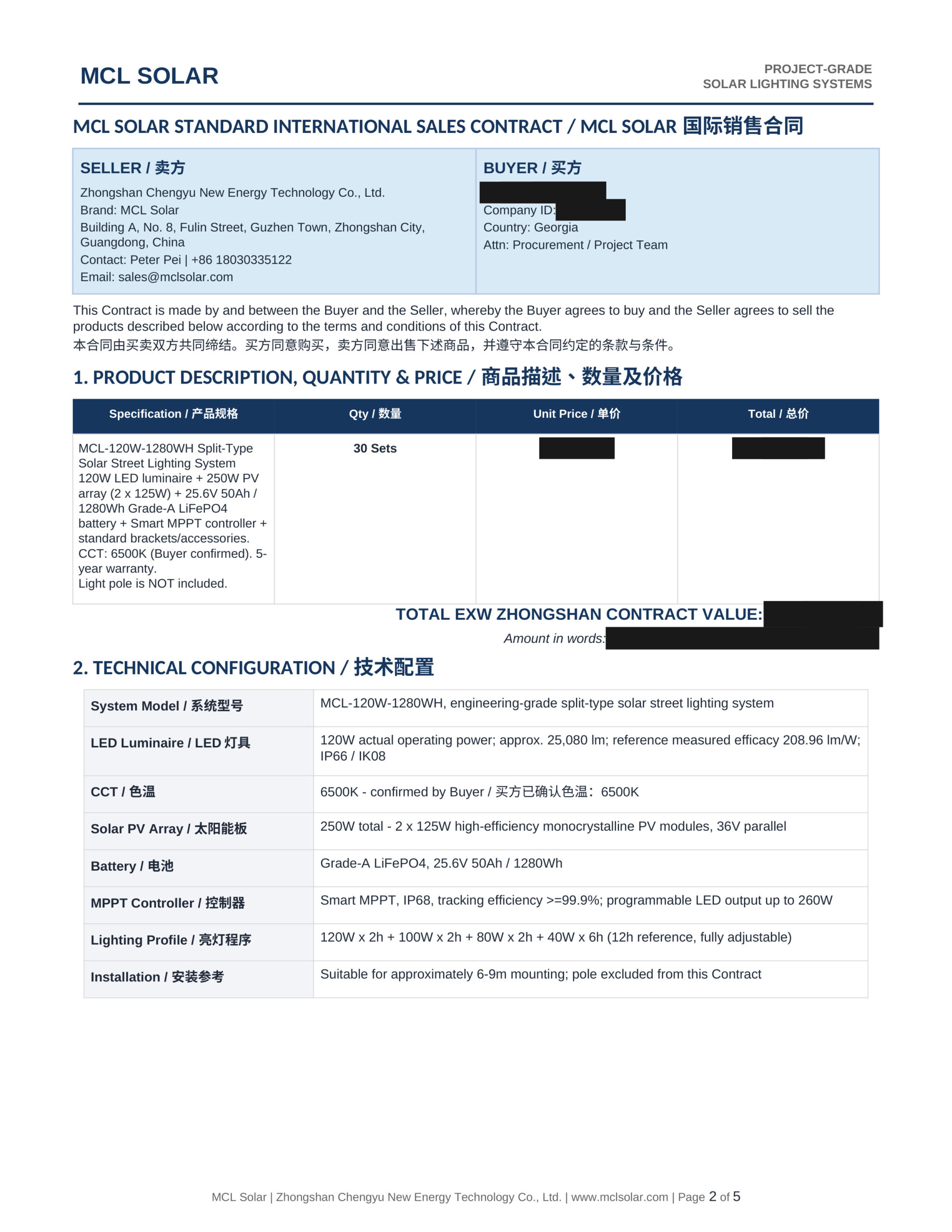

Figure 2: Page 2 of Contract MCL-GEO-20260812 outlining the rigorous technical specifications: 120W operating power, 25,080 lumens, 208.96 lm/W efficacy, 6500K CCT, 250W PV array, 25.6V 1280Wh LiFePO4 battery, and IP68 smart MPPT controller.

2. Photometric Performance: Calibrated 208.96 lm/W Efficacy & 6500K Daylight Safety

Optical precision and raw luminous output are critical safety requirements along unpaved mine haul roads where vehicle operators navigate sharp bends, blind crests, and sheer drop-offs at night. When engineering a solar street light for mining projects, MCL Solar eliminates the guesswork through laboratory-certified photometric testing:

• EVERFINE GO3000H Photometric Verification: In compliance with IES LM-79 testing standards, the optical engine of the MCL-120W luminaire was calibrated using an EVERFINE GO3000H distributed goniophotometer. Testing established a measured luminous efficacy of 208.96 lm/W at 100W operating baseline (20,895.7 lumens), translating into an exceptional output of approximately 25,080 lumens at full 120W operating power.
• 6500K Industrial Daylight Spectrum (Buyer Confirmed): While standard municipal roadways frequently utilize 3000K or 4000K warm lighting, the mining project engineers explicitly mandated 6500K cool daylight CCT. Under heavy dust, fog, and nighttime mining conditions, 6500K light enhances visual acuity, prevents operator fatigue, and highlights terrain obstacles, rock falls, and edge berms with maximum contrast.
• Batwing Asymmetric Type II-M Optics: Utilizing UV-stabilized optical-grade PMMA lenses with a 140° × 70° batwing light distribution, the system spreads uniform horizontal illuminance (\(U_0 \ge 0.42\)) across a 12-meter road width with pole spacings of 30 to 35 meters, eliminating dark zebra-striping patterns.
• Die-Cast ADC12 Enclosure (IP66 / IK08): The luminaire body is cast from heavy ADC12 aluminum alloy with deep convective heat sink fins, maintaining LED junction temperatures below \(T_j \le 62^\circ ext{C}\) even during high summer ambients, ensuring \(L_{80} \ge 60,000 ext{ hours}\) lumen maintenance.

Figure 3: Page 3 of the technical contract documenting the EVERFINE GO3000H photometric reference (208.96 lm/W), the 6500K CCT confirmation, oversized 250W PV array design, and modular split-system architecture.

3. Energy Storage Architecture: High-Voltage 25.6V 50Ah (1,280Wh) Grade-A LiFePO4 Core

The energy storage subsystem is the heart of off-grid mining reliability. Typical commercial solar streetlights employ low-voltage 3.2V or 12.8V battery packs made with low-grade recycled cells. In an industrial mining application, low-voltage designs suffer catastrophic ohmic losses (\(I^2R\)) under high wattage, resulting in excessive heat generation and voltage sag.

MCL Solar engineered a dedicated high-voltage industrial battery pack for the Georgia mining installation:

1. High-Voltage 25.6V Nominal Architecture: By configuring 8S Grade-A 3.2V prismatic LiFePO4 cells in series to achieve a 25.6V system bus, current draw at 120W is reduced to just ~4.7A (compared to 37.5A in a 3.2V system). This reduces resistive cabling heat dissipation by over 84%, dramatically improving system round-trip efficiency.
2. 1,280Wh Gross Energy Capacity: Providing 50Ah at 25.6V, the battery stores 1,280 watt-hours of usable energy, enabling deep discharge cycles without stressing individual cell chemistry.
3. Low-Temperature Thermal Protection Enclosure: The battery pack is housed within a heavy-gauge, corrosion-resistant steel battery enclosure fitted with high-density thermal insulation blankets. The integrated industrial Battery Management System (BMS) incorporates a smart low-temperature sensor that automatically throttles charging currents when internal cell temperature drops below 0°C, preventing lithium plating while maintaining discharge capability down to -20°C.
4. Automated Laser Spot Welding & Cell Balancing: All cell connections are executed via automated ultrasonic/laser spot welding with heavy nickel-plated copper busbars, eliminating mechanical vibration looseness caused by continuous haul truck traffic.

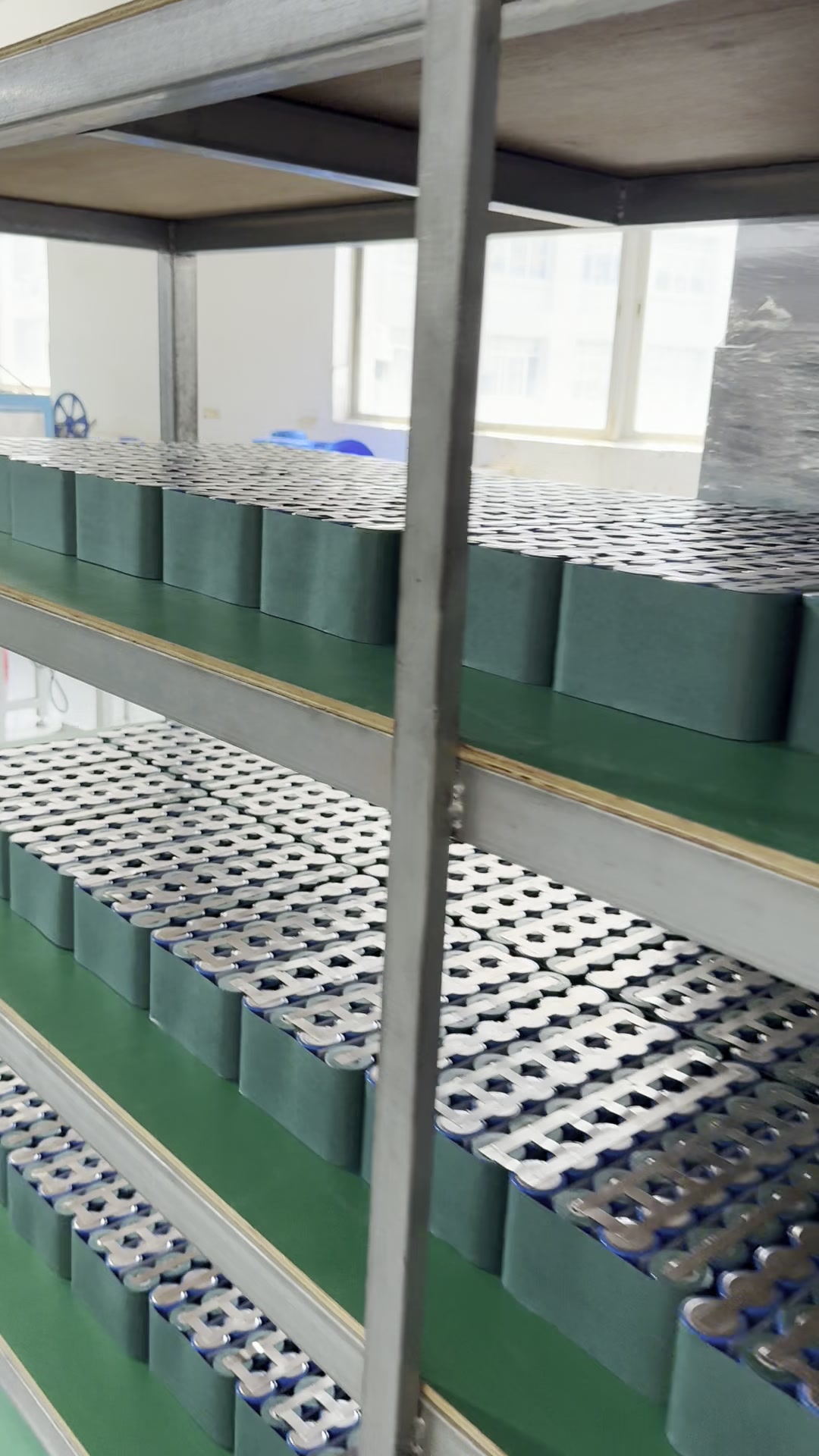

Figure 4: Automated precision spot welding and BMS configuration of Grade-A LiFePO4 battery modules inside MCL Solar’s 35,000 m² clean production facility.

4. Power Generation & Control: 250W Oversized PV Array with Smart MPPT Dynamic Dimming

A critical engineering upgrade implemented during the technical confirmation phase was the solar generator sizing. While initial project feasibility estimates suggested a 180W to 200W solar panel, MCL Solar’s engineering team increased the PV array capacity to 250W total (configured as two 125W monocrystalline modules connected in 36V parallel).

This deliberate 25% to 38% oversizing provides vital operational margins:

• Fast Recharging During Short Winter Days: In Caucasus mountain latitudes during December and January, effective peak sun hours (PSH) drop to 2.5 to 3.0 hours per day. The 250W PV array delivers peak charging currents exceeding 7A at 36V, fully replenishing a depleted 1,280Wh battery within 4 to 5 hours of diffuse sunlight.
• Steep Tilt Angle Mounting Brackets: The mounting structure is engineered with a 45° to 55° adjustable winter inclination angle, promoting natural snow shedding and maximizing low-angle winter solar irradiance.
• IP68 Smart MPPT Controller (≥99.9% Tracking Efficiency): Operating an advanced maximum power point tracking algorithm with ultra-fast sampling frequency, the controller extracts maximum harvest even during intermittent cloud cover. The unit features full potted epoxy encapsulation (IP68) to protect internal electronics against conductive mineral dust.
• Dynamic 4-Stage Dimming Profile: To optimize energy conservation during low-traffic periods without sacrificing safety, the system operates an intelligent programmable lighting schedule:
  • Phase 1 (120W full power for 2 hours): Evening shift handover and peak haulage traffic.
  • Phase 2 (100W for 2 hours): Active extraction and plant transport.
  • Phase 3 (80W for 2 hours): Mid-shift transport monitoring.
  • Phase 4 (40W for 6 hours): Dawn operations with reserve autonomy, ensuring 3 to 4 continuous overcast/snowy days of backup runtime.

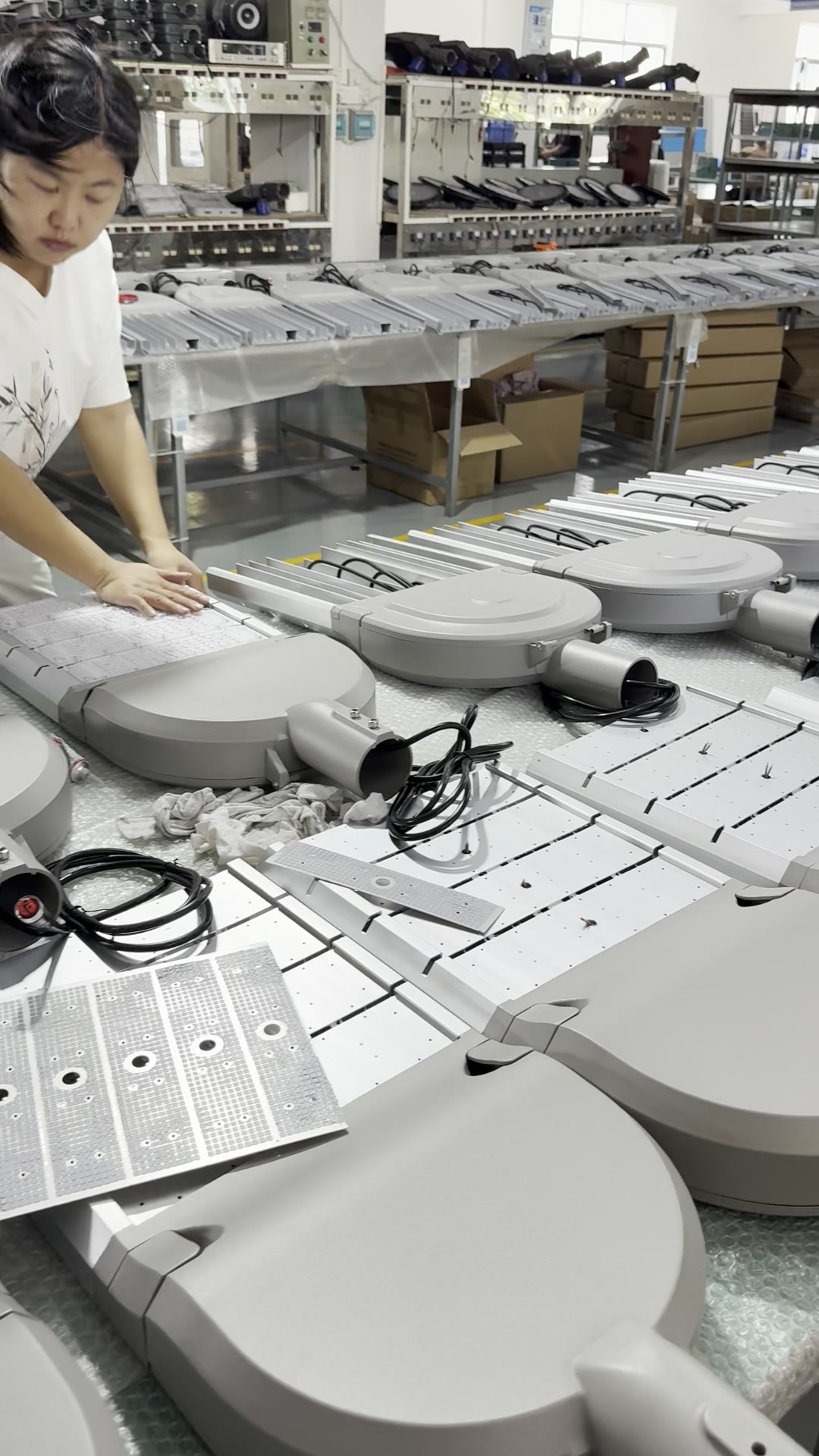

Figure 5: High-speed SMT placement and robotic optical lens sealing line assembling 120W heavy-duty mining luminaires at MCL Solar.

5. B2B Comparison Matrix: Industrial Mining Grade vs Generic Commercial Solar Lights

Mining procurement managers and EPC contractors are often presented with quotes from trading intermediaries offering low-cost commercial lighting. The comparison matrix below details why a specialized solar street light for mining projects is essential for harsh industrial operations:

Figure 6: 100% 72-hour continuous burn-in aging test conveyor chamber subjecting mining luminaires to thermal and electrical stress before final factory release.

6. Factory Acceptance Test (FAT) & Rigorous Quality Assurance

In accordance with Section 4 of Contract MCL-GEO-20260812, all 30 sets underwent rigorous Factory Acceptance Testing (FAT) prior to containerization and dispatch at MCL Solar’s 35,000 m² Guzhen manufacturing headquarters:

1. 100% Continuous 72-Hour Burn-in Aging: Every luminaire was powered at 100% continuous load inside an enclosed thermal aging room at +45°C ambient temperature. Drivers and LED arrays exhibiting thermal drift or voltage drop exceeding 1.5% were automatically quarantined.
2. High-Pressure IP66 Dust & Water Ingress Verification: Luminaires and smart MPPT controller enclosures were subjected to high-pressure water jets and fine talcum dust testing chambers to verify seal integrity against open-pit mineral slurry.
3. Drop & High-Vibration Mechanical Testing: Luminaire brackets and battery enclosures were subjected to multi-axis mechanical vibration tables simulating haul road resonance up to 20G peak acceleration.
4. Seaworthy Heavy Export Packaging: All components were packed in multi-wall export cartons with custom high-density EPE foam inserts, securely strapped to fumigated solid-wood pallets for international freight.

Figure 7: Page 5 of Contract Ref: MCL-GEO-20260812 showing final execution signatures, company seals, confirmed 6500K CCT mandate, and the official 5-year industrial factory warranty guarantee.

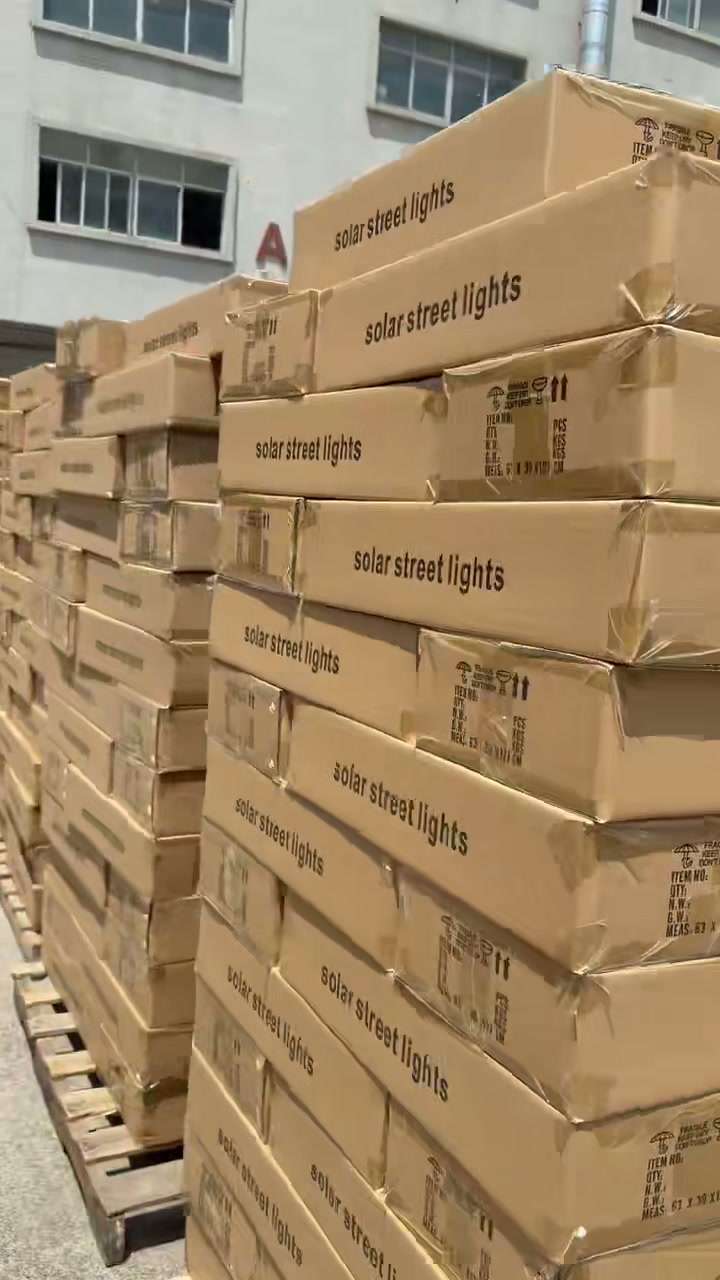

Figure 8: Finished industrial solar lighting systems packaged, palletized, and staged for container loading in MCL Solar’s 35,000 m² export staging warehouse.
