Tool-Free Maintenance Demonstration

Watch how our innovative buckle design enables rapid driver replacement for high mast systems, saving high-altitude labor costs.

Why Choose MCL Solar UltraMod?

🛠️

Tool-Free Maintenance

Innovative buckle design. Open the driver compartment by hand without screws. Save 80% on labor costs during high mast maintenance.

🧩

Flexible Modular Design

Scalable from 100W to 2000W. Independent LED modules allow for easy replacement of single units without replacing the whole fixture.

❄️

Cool/Hot Separation

The power supply box is thermally isolated from the LED heat sink. Keeps the driver cool and extends the system lifespan to 50,000+ hours.

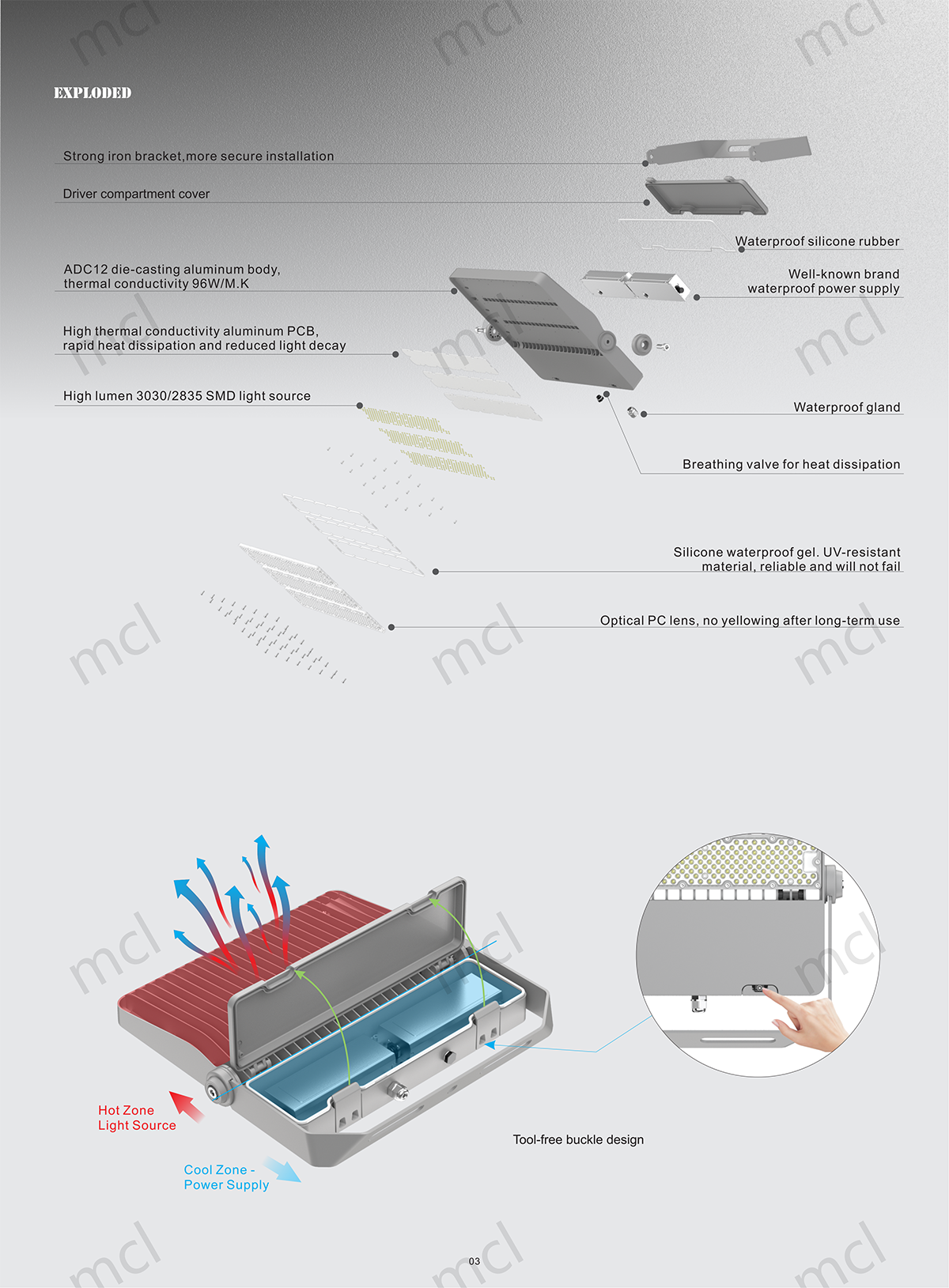

Modular LED sports light exploded view components tool-free maintenance

Engineered for Durability

  • ADC12 Aluminum Body High thermal conductivity (96W/m.K) die-cast housing ensures rapid heat dissipation for high-power stadium lights.
  • IP65 & IK08 Protection Double waterproof protection with silicone rubber rings. Tested against salt spray for coastal seaports in Southeast Asia and extreme weather conditions.
  • Breathing Valve Technology Balances internal/external pressure to prevent condensation fogging inside the PC lens in tropical climates.

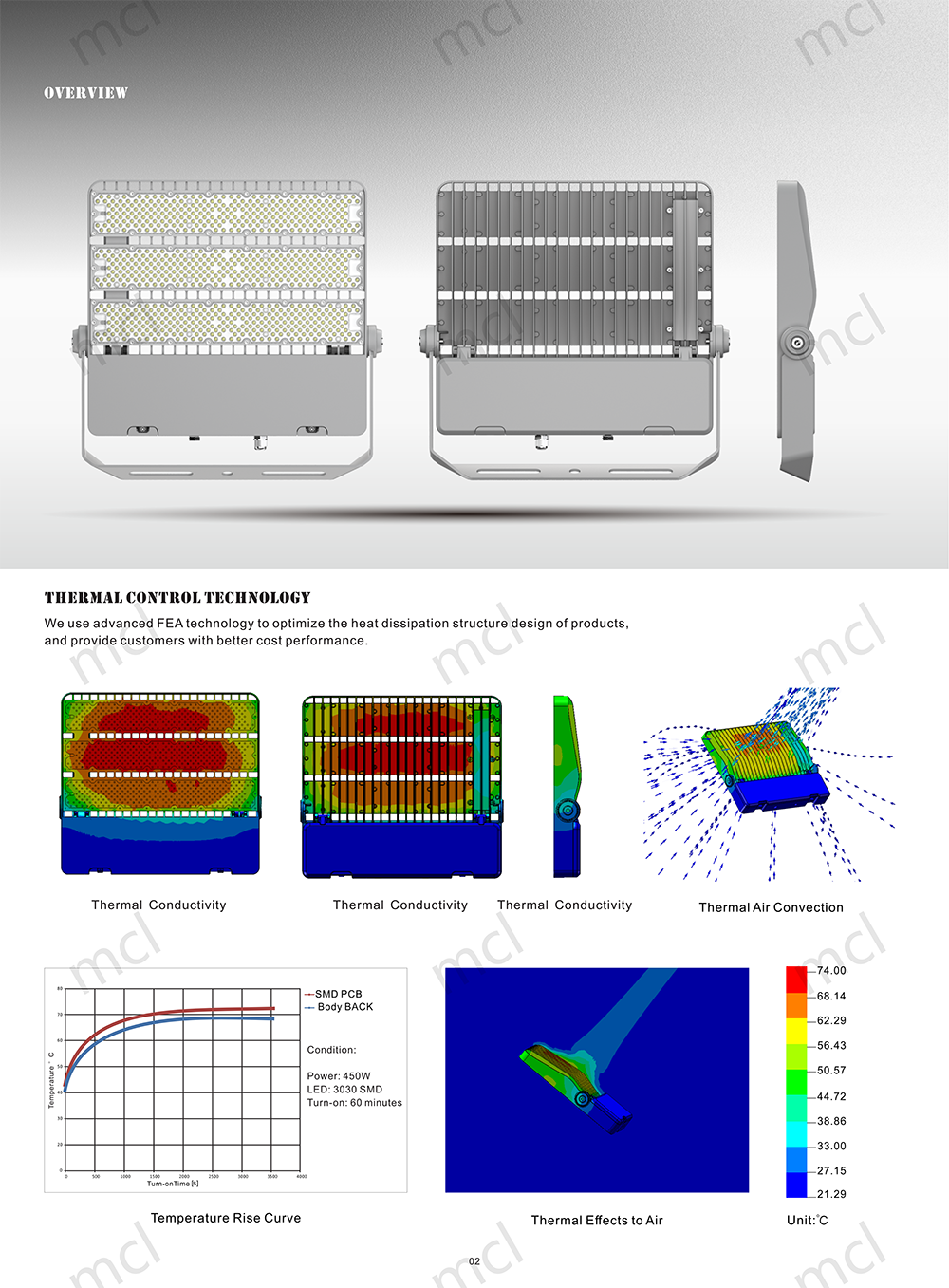

Advanced Thermal Control

FEA (Finite Element Analysis) optimized structure ensures the LED junction temperature < 70°C, guaranteeing stable performance for stadium lighting even in Middle East extreme heat.

Hot Zone: LED Source (Rapid Cooling Fin)
Cool Zone: Power Supply (Thermally Isolated)
ADC12 aluminum LED high mast light heat dissipation thermal management Middle East project

Technical Specifications

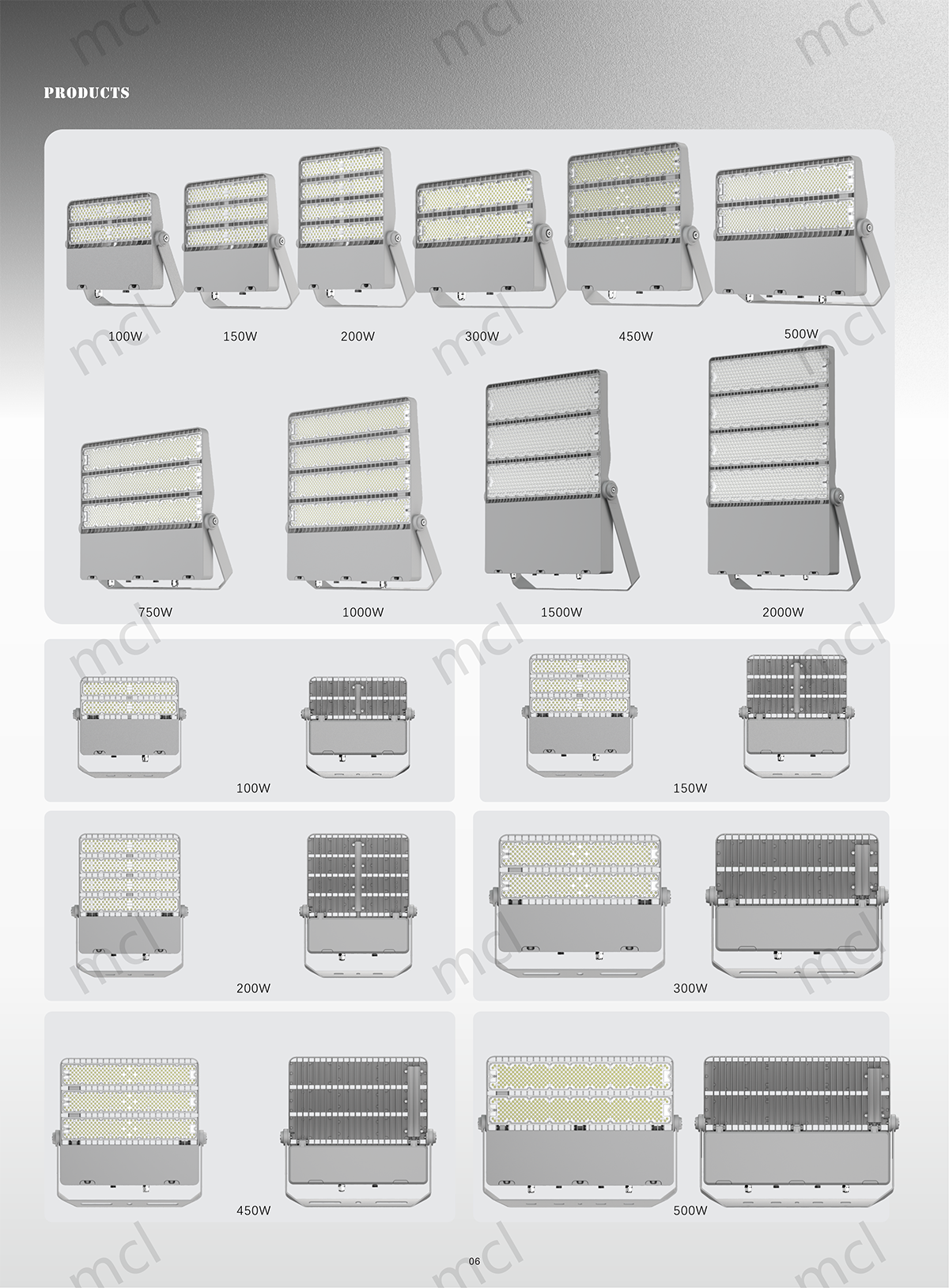

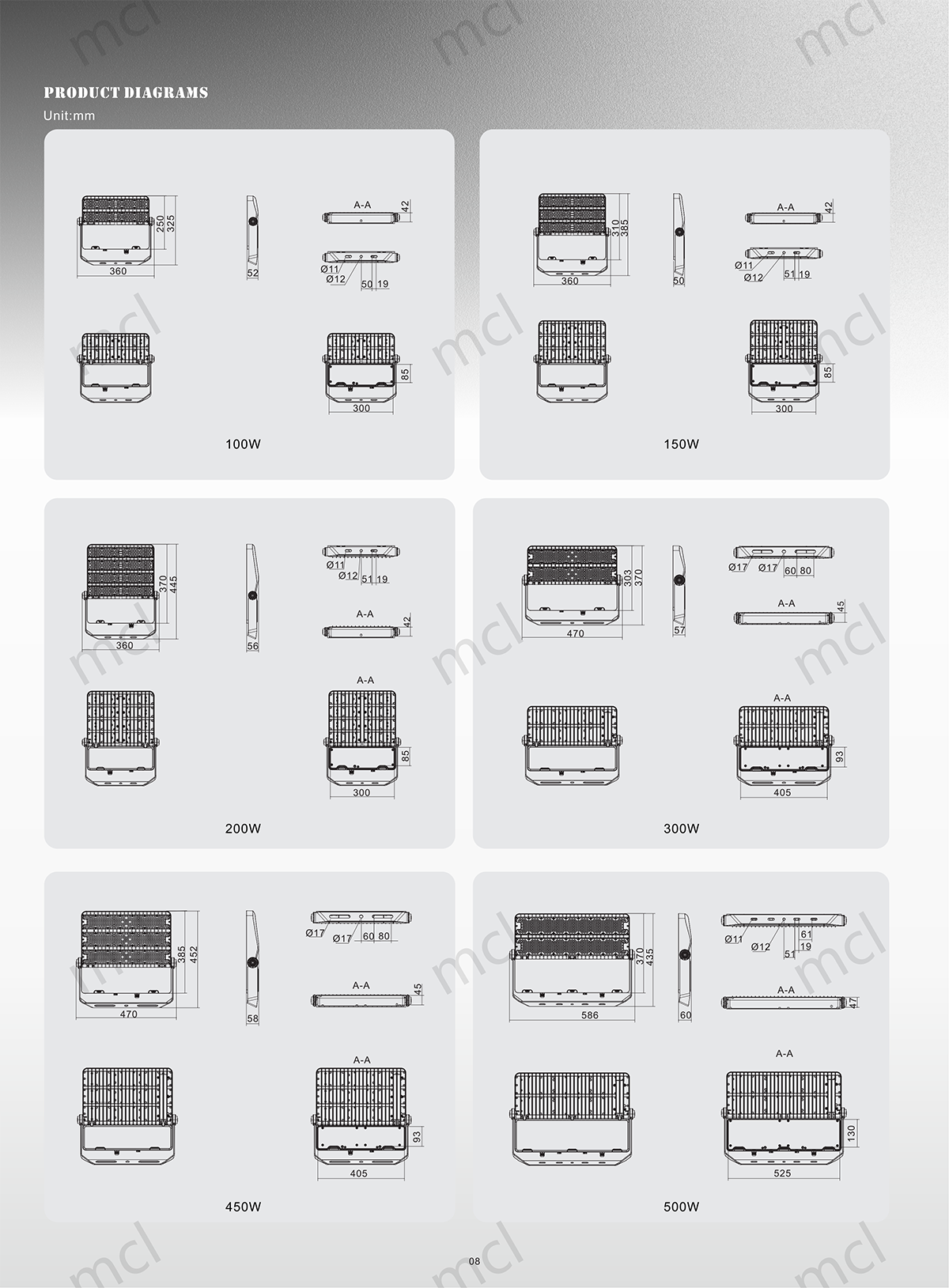

100W to 2000W modular LED flood light family series China supplier Modular LED high mast light dimension drawing specs stadium lighting
Product SeriesUltraMod Modular LED Flood Light
Power Range100W - 2000W (Modular Combination)
Luminous Efficiency150 - 200 lm/W (High Efficacy)
Input VoltageAC100-277V / 347V / 480V (Industrial)
Beam Angles15° / 30° / 60° / 90° / 120° (Symmetric/Asymmetric)
IP / IK RatingIP65 Waterproof / IK08 Impact Resistant
MaterialADC12 Die-cast Aluminum
Driver OptionsMeanwell / Sosen / Inventronics
* IES files available for Dialux stadium lighting simulation.
* 5-Year Warranty Standard from Zhongshan Factory.

Applications & Mounting

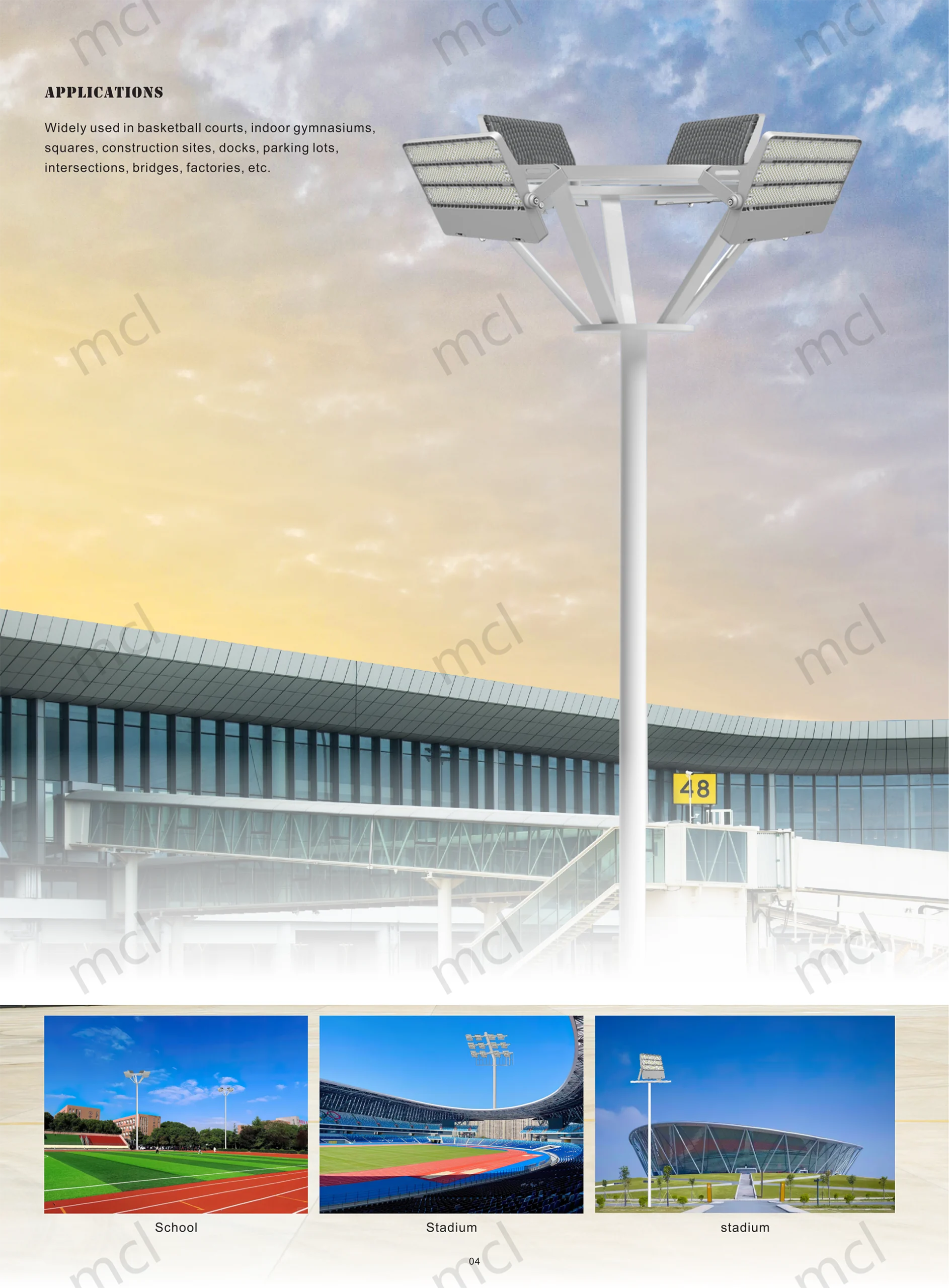

High mast lighting project for airport and football field Malaysia Philippines
Modular LED flood light floor installation

Floor Mount

LED high mast light ceiling mount

Ceiling Mount

LED stadium light wall mounted installation

Wall Mount

20m 30m high mast pole installation modular LED flood light

High Mast Pole

Professional Export Packing

Ensures safety during global sea/air transportation.

  • ✔ Lined with EVA foam protection.
  • ✔ Sturdy outer carton box (K=K standard).
  • ✔ Pallet packaging available for bulk wholesale orders to the Philippines, Malaysia, Middle East, and Africa.
Export standard carton and pallet packing for high mast LED lights Nigeria Middle East

FAQ

Is the UltraMod suitable for high mast lighting?

Yes, the UltraMod series is specifically designed as a Modular LED High Mast Light. Its lightweight aluminum body and rotatable modules make it ideal for 20m-30m poles in airports, seaports, and stadiums.

What is the tool-free maintenance advantage?

MCL Solar's patented buckle design allows maintenance teams to open the driver box by hand. This tool-free maintenance feature significantly reduces labor costs for municipal projects, especially when operating at heights.

Can you provide IES files for simulation?

Yes, as a professional manufacturer, we provide complete IES files (15°/30°/60°/90°/120°) for Dialux simulation to ensure your sports field or port project meets exact lux level requirements.
