All in Two Solar Street Light Manufacturer China | 50W-150W

Premium Build Quality

Industrial Grade Die-Cast Aluminum | High Efficacy >170lm/w

FRONT VIEW
High efficacy 170lm/w Philips LED module for all in two solar street light

High Lumen LED Matrix

Bat-wing Optical Lens | >170lm/w Efficacy

BACK VIEW
Heavy duty ADC12 aluminum heat sink for semi integrated solar light

Heavy-Duty Heat Sink

ADC12 Aluminum | Junction Temp < 65°C

Why Choose MCL All-in-Two?

🔋 Anti-Theft Battery Design

Unlike traditional split lights, our LiFePO4 battery is built safely inside the lamp housing. No heavy battery box on the pole means easier installation and superior anti-theft protection for rural and municipal roads.

📦 Save 20% Shipping Cost

Ultra-compact packaging. The semi-integrated design allows distributors to load 20% more units in a 40HQ container compared to traditional split types, heavily reducing your ocean freight costs and maximizing profit.

🏗️ Project Customization

From 40W to 150W real output. We allow flexible solar panel sizing to meet specific autonomy requirements (e.g., 12 hours/night + 5-7 rainy days) strictly matching your government tender specs.

Ready-to-Ship Stock Models

M-Series Engineering Solar Lights

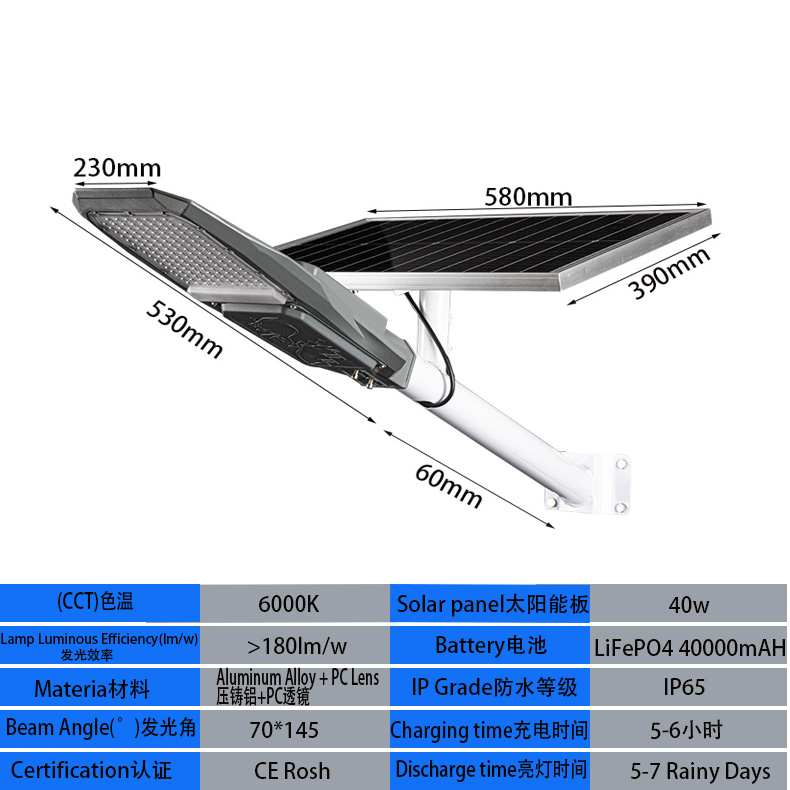

M40 40W all in two solar street light semi integrated China factory

Model M40

  • Solar Panel: 40W Mono-Crystalline
  • Battery: 40,000mAh LiFePO4 (New)
  • Lumen: 5000-6000lm
  • Pole Height: 5m - 6m
Inquiry Price →

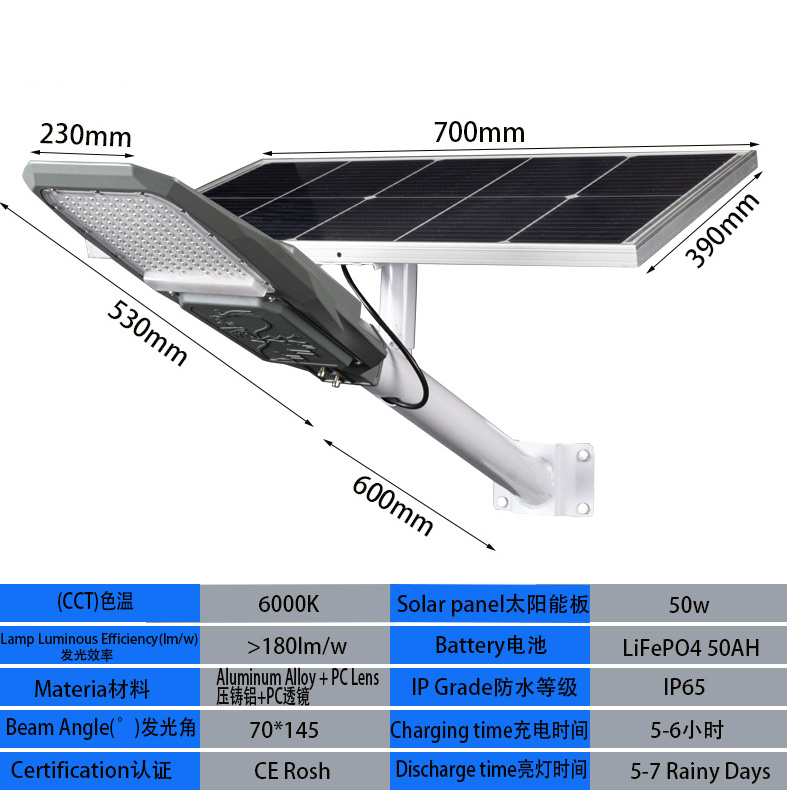

M50 50W semi integrated solar street light manufacturer China

Model M50

  • Solar Panel: 50W Mono-Crystalline
  • Battery: 50,000mAh LiFePO4 (New)
  • Lumen: 6500-7500lm
  • Pole Height: 6m - 7m
Inquiry Price →

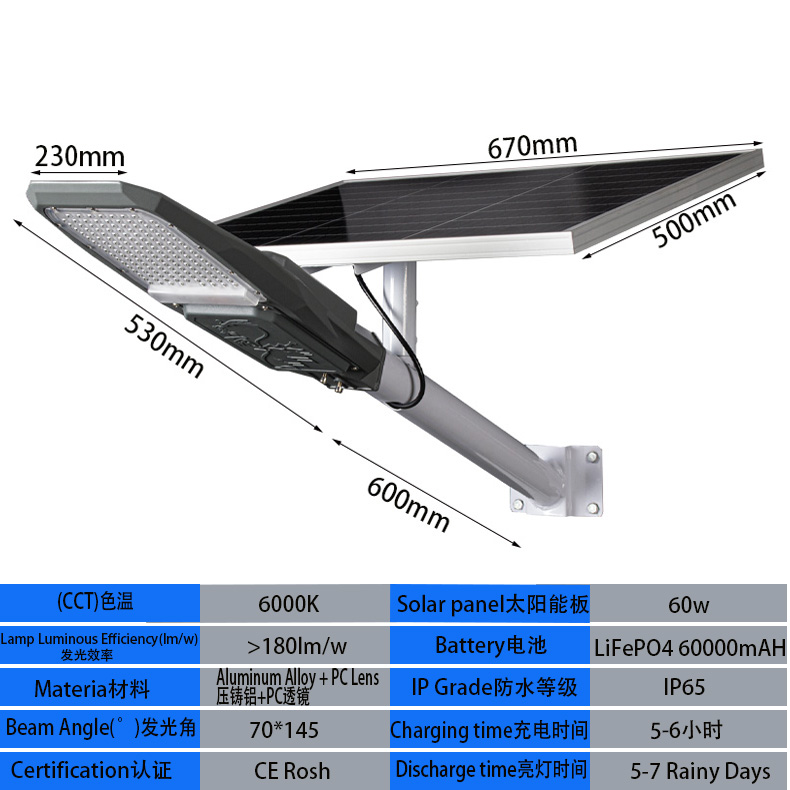

M60 60W all in two solar street light LiFePO4 battery highway project

Model M60

  • Solar Panel: 60W Mono-Crystalline
  • Battery: 60,000mAh LiFePO4 (New)
  • Lumen: 8000-9000lm
  • Pole Height: 7m - 8m
Inquiry Price →

Internal Structure Design

Exploded view of All-in-Two Solar Street Light with built-in LiFePO4 battery anti-theft design

Patented Installation Bracket

Designed for versatility. One light fits multiple application scenarios.

  • ✓ 0°-180° Adjustable Angle
  • ✓ Fits Pole Diameter: 60mm - 90mm
  • ✓ Wall Mount & Pole Mount Supported
  • ✓ Wind Resistance: Level 12 (Typhoon Ready)
Wall mounting vs Pole mounting installation diagram for semi-integrated solar street light

Technical Specifications

Parameter Specification
Product Type All-in-Two / Semi-Integrated Solar Street Light
System Voltage 3.2V / 12.8V (Project Optional)
Solar Panel Mono-Crystalline Silicon (High Efficiency 21%)
Battery Tech LiFePO4 (Brand New, >3500 Cycles)
LED Chip Philips / Bridgelux 5050 (>180lm/w)
Housing ADC12 Die-Cast Aluminum (Anti-Corrosion)
Waterproof IP65 Certified
Working Temp -20°C ~ +60°C (Tropical Climate Ready)
Warranty 3 Years / 5 Years (MCL Factory Standard)

Engineering Dimensions

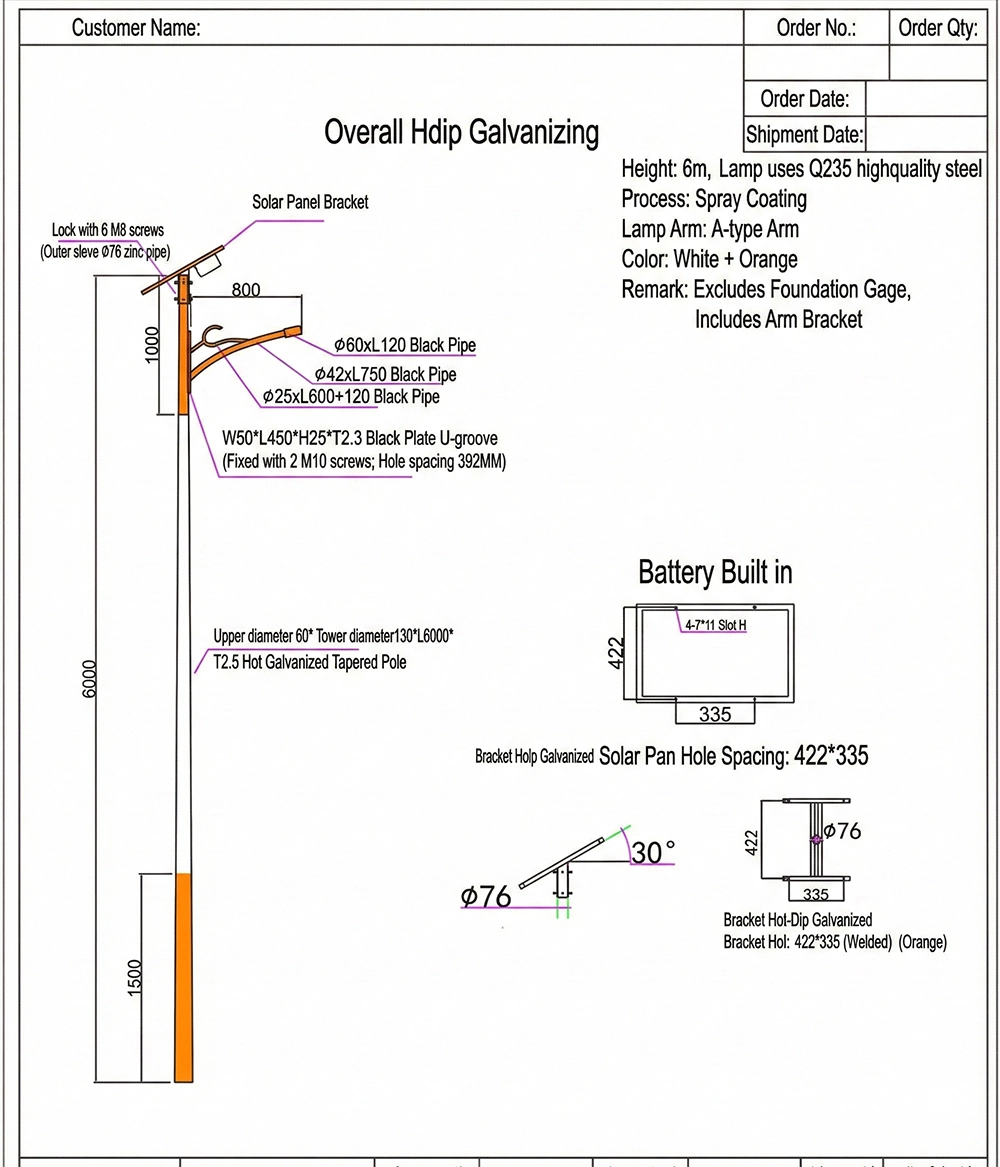

Technical drawing of All-in-Two solar street light dimensions China supplier

FAQ for Wholesalers

Common questions from our global partners

What is an "All-in-Two" Solar Street Light?
All-in-Two (or Semi-Integrated) means the lithium battery is safely built into the lamp head, but the solar panel is separate. This design offers the easy installation of All-in-One lights but with the flexibility of a larger solar panel for better charging in low-light areas, combined with top-tier anti-theft security.
Can I customize the power to 150W?
Yes! We specialize in project customization. While our stock models are M40-M60, as a China manufacturer, we can upgrade the solar panel size and battery capacity to achieve real 100W-150W high power output for highway projects.
How many units fit in a shipping container?
Our compact packaging design allows us to load approx. 800-1000 sets in a 40HQ container. Separating the panel and lamp body saves significant volume compared to traditional bulky split lights.
Do you offer OEM housing colors?
Yes. Standard is Engineering Grey. For wholesale orders over 50 units, we can customize the housing color to Orange (MCL Color), Black, or White to perfectly match your brand identity.

Ready to Place an Order?

2026 Factory Direct | No Middleman | Fast Production
