Quick Answer
For 10m to 12m poles, split-type solar street lights are almost always the better choice. These pole heights require higher lumen output and larger solar panels and batteries than all-in-one units can typically accommodate. Split-type systems allow each component—solar panel, battery, controller, and LED fixture—to be sized independently and mounted for optimal performance. This design simplifies wind-load calculation, improves heat dissipation, and makes maintenance more practical at height. All-in-one units are best reserved for 3m to 6m poles in residential or decorative settings. When evaluating options, compare complete-luminaire lumen output, battery capacity, autonomy days, operating temperature range, and IES photometric files—not wattage alone.
Key Takeaways
- Pole height of 10–12m demands high lumen output that all-in-one designs rarely deliver efficiently.
- Split-type systems offer design flexibility: larger PV panels can be mounted separately, and batteries can be placed at a serviceable height.
- Wind-load and structural safety are easier to engineer when the PV array is not integrated into the luminaire head.
- Thermal management improves significantly: LEDs and batteries operate cooler, extending component life.
- Maintenance costs decrease because each component can be accessed or replaced independently.
- Verify performance claims with IES files, complete-luminaire efficacy data, and project-specific simulations before purchase.
1. Why This Topic Matters
Lighting a road with 10m to 12m poles is a different engineering problem from lighting a residential street with 4m posts. The mounting height dictates the required lumen output, beam distribution, pole spacing, and structural loading. At 10m to 12m, buyers are typically working on municipal roads, industrial zones, ports, airports, and large public areas. These projects have formal specifications, tender documents, and long-term performance expectations.
The common mistake is treating solar street lights as a single product category. A buyer might see an attractive all-in-one design with an integrated panel and battery and assume it can be scaled up for taller poles. In practice, the physical constraints are severe:
- An all-in-one unit must fit the solar panel, battery, controller, and LED module into one housing at the top of the pole. For the wattage required at 10–12m mounting height, the PV panel would need to be large, creating a heavy sail area. This increases wind load at the top of the pole and risks structural failure.
- Batteries integrated at the top of a pole face high ambient temperatures under the sun. Elevated battery temperature accelerates capacity degradation, shortening system life.
- Servicing a failed battery or controller at 10m to 12m requires a bucket truck or crane every time. Split-type systems can place the battery in a lower compartment for easy access.
This is why split-type solar street lights have become the standard engineering answer for high-mast, high-power solar lighting applications. The decision affects not only the initial purchase price but also installation cost, structural safety, maintenance frequency, and total lifecycle cost.
2. Core Concept: How Split-Type Design Works
A split-type solar street light separates the major components into distinct physical units, connected by cables.
Component Breakdown of a Split-Type System
| Component | Typical Placement | Function |
|---|---|---|
| Solar panel | On top of the pole, tilted toward the equator | Converts solar irradiance into electrical energy |
| LED luminaire | Mounted on an arm or directly on the pole | Distributes light onto the road surface |
| Battery | Inside a battery box on the pole, underground, or in a base cabinet | Stores energy for nighttime operation |
| Charge controller | Near the battery, often inside the battery box | Regulates charging, controls lighting modes, protects battery |
| Cables | Through the pole interior or pole-mounted conduit | Connects components |
Why Separation Helps at 10–12m Heights
The separation of components produces several engineering benefits:
1. PV Sizing Is Independent of Luminaire Geometry
At 10m to 12m, a typical LED luminaire might draw 60W to 150W depending on road class and target lux. The solar panel must generate enough daily energy to cover this load plus system losses, and the battery must sustain several rainy days. A split system allows a 150W or 200W solar panel or larger to be mounted on the pole top, independent of the luminaire size. In an all-in-one design, the PV area is limited by what can be integrated into the housing — a constraint that becomes unacceptable at higher wattages.
2. Battery Temperature Can Be Controlled
Batteries in integrated units at the pole top are exposed to direct sunlight and the heat of the LED driver. Lithium-based batteries degrade faster at elevated temperatures. A split-type system can place the battery lower on the pole, where it receives more shade, or underground in a protected enclosure. This reduces cycle-life loss and improves winter performance.
3. Wind Load Is Manageable
According to engineering practice, the effective sail area at the top of a 10m to 12m pole must be minimized. A large integrated unit combining the PV panel, battery, and luminaire creates a significant wind-catching surface. A split-type design with a separate PV panel mounted on a shorter bracket and the luminaire on an arm produces a more favorable moment calculation. This simplifies structural verification and reduces pole reinforcement costs.
4. Maintenance Is Practical
The battery is the first component to fail in most solar street lights. In a split-type system, the battery can be placed in a lockable, accessible compartment at 3m to 4m height or in a pole-base cabinet. Replacing a battery becomes a two-person maintenance task. For all-in-one units, accessing the battery means working at full pole height, which requires specialized equipment and creates higher safety risk.
5. Modes and Performance Can Be Tuned
Split-type controllers allow programmable dimming profiles, multiple time periods, and communication modules for remote monitoring. These functions are particularly important for municipal buyers who want adaptive lighting levels during low traffic hours.
3. What Determines Real-World Performance
Buyers often compare solar street lights by wattage. This is not the correct approach. The real-world performance of a solar street light is determined by the interaction of optics, energy generation, storage, and control electronics.
Key Performance Factors
| Factor | What to Ask | Why It Matters |
|---|---|---|
| Complete-luminaire efficacy | What is the total luminaire lumen output per watt, including driver losses, not just the LED package? | Integrated luminaires may claim high LED chip efficacy but lose 10–20% through the driver and optical system |
| IES photometric distribution | Is an IES or LDT file available for this exact configuration? | Without photometric data, you cannot compute pole spacing, uniformity, or achieved lux |
| Battery capacity and chemistry | What is the usable capacity in Wh? What is the cycle life at the expected depth of discharge? | A battery with 6000 cycles at 50% DoD will outlast one rated at >3,500 cycles @ 80% DOD under the same load |
| Autonomy days | How many consecutive rainy days can the system provide full or reduced lighting? | This determines the PV and battery buffer above the nightly load |
| PV panel efficiency and tilt | What is the actual rated power at STC? Is the tilt angle installed adjustable? | Real irradiance is lower than STC; fixed horizontal mounting reduces winter output |
| Controller type | Is the MPPT algorithm verified in the field? Does it support dimming schedules? | PWM controllers are less efficient under partial shading and cold conditions |
| Thermal design | How is heat dissipated from the battery and LED driver at 50°C ambient temperature? | High temperature shortens electrolytic capacitor life and battery cycle life |
| IP rating | What is the complete-product IP rating, not just the component rating? | Dust and water ingress quietly degrade connectors, controllers, and battery terminals |
Why All-in-One Units Fail These Tests at 10–12m
For a 10m pole, a typical energy requirement might be:
- LED load: 80W
- Operating hours: 12 hours
- Dimmable profile: 100% from 18:00–22:00, 50% from 22:00–06:00
- Equivalent average load: approximately 53W for 12 hours
- Nightly energy consumption: approximately 640Wh
- Battery capacity required with 3-day autonomy and 50% DoD: approximately 3.8–4.5kWh
- PV panel required (assuming 4.5 peak sun hours): approximately 200–250W
An all-in-one unit would need to contain a 4kWh battery and a 250W panel inside the luminaire head. No practical all-in-one product achieves this without becoming oversized and structurally unsafe. This is why no reputable manufacturer offers an all-in-one solar street light for 10–12m poles at 60W to 150W loads. The design simply does not lend itself to the physics of the application.
4. How Requirements Change by Project Scenario
Not all 10m to 12m pole projects are the same. The application determines the technical specification.
Municipal Roads and Highways
Requirement: Consistent uniformity, controlled glare, and predictable light levels across the road surface.
Why split-type is better: Municipal projects often require IES files for DIALux simulation, and the luminaire must be selected to match the road geometry. Split-type systems from manufacturers like MCL Solar can be supplied with IES-based lighting design support. The PV and battery sizing can be adjusted to suit the required operating hours and autonomy. All-in-one units are rarely accepted for these projects because the photometric output is limited and customization is difficult.
Coastal and High-Wind Areas
Requirement: Corrosion resistance and minimal wind sail area.
Why split-type is better: In coastal areas, the PV panel mounting structure can be designed with hot-dip galvanized steel and stainless steel fasteners. The luminaire is separate from the panel, so the pole top structure can be engineered with a lower center of gravity and reduced wind load. All-in-one units with large integrated panels create excessive wind loading at height.
Industrial and Port Applications
Requirement: High lumen output, long operating hours, and resilience to harsh environments.
Why split-type is better: Ports and industrial zones often require 100W to 150W or more from each fixture. The battery bank must provide 5–7 days of autonomy or more. Split-type systems allow oversized battery cabinets at the pole base or underground battery pits. This is not possible with integrated designs.
High-Temperature and Tropical Climates
Requirement: Battery longevity in hot weather.
Why split-type is better: Batteries in integrated units are exposed to the full thermal load of the enclosure. In tropical climates, internal battery temperatures can exceed 55°C, which drastically reduces cycle life. Split-type systems allow battery placement lower on the pole or in a ventilated compartment, reducing ambient temperature and extending lifetime.
Smart City and Remote Monitoring Projects
Requirement: Data communication, remote dimming, fault alarms, and platform integration.
Why split-type is better: Selected MCL Solar systems support remote dimming, status monitoring, fault alerts, and platform management through communication options such as 4G, LoRa, WiFi, or other project-specific protocols. These functions require the controller and communication module to be mounted separately in an accessible enclosure. Split-type design is the natural fit.
Rural and Off-Grid Areas
Requirement: Simple installation, low maintenance cost, and reliable basic operation.
Why split-type is better: Even in rural areas where cost matters, a 10–12m pole is used only for major roads. The higher lumen requirement still dictates a split system. A rural project with a 30W load on a 6m pole could reasonably use an all-in-one unit; a 10–12m pole with a 60W to 100W load cannot.
5. What Buyers Commonly Overlook
Buyers frequently make the following mistakes when procuring solar street lights for tall poles. Attention to these points prevents project failures.
1. Comparing Wattage Instead of Lumen Output
The LED package may be rated at 200 lm/W, but the complete luminaire produces a much lower efficacy after the driver, lens, and thermal management are accounted for. Ask for complete-luminaire lumen output, not the chip-level rating. Verify this against the IES file or a photometric test report.
2. Ignoring IES Distribution
A street light without an IES file is a decorative product. Without photometric data, you cannot calculate pole spacing, beam angle, or uniformity ratio. For 10–12m poles, the road width and mounting height determine the required distribution type (e.g., type II, type III, or type IV). Demand an IES or LDT file before ordering.
3. Forgetting Wind-Load Verification
At 10m to 12m, the pole must withstand local wind speeds, including gust factors. The solar panel bracket, luminaire arm, and any mounted equipment must be included in the wind-load calculation. Buyers should ask for the effective wind-load area of the proposed system and compare it to the structural capacity of the pole. It is important to note that project-specific wind design is different from a universal “typhoon rating.”
4. Overlooking Battery Temperature
A lithium battery rated at 6000 cycles to 70% capacity normally assumes a moderate temperature, typically 25°C. At 45°C, the same battery may lose half its cycle life. Buyers in hot climates should specify the expected ambient temperature and require the supplier to quote battery life under those conditions, not at the theoretical lab rating.
5. Confusing Complete-System Warranty with Component Lifetime
The 5-year warranty on a complete MCL Solar system covers the entire product as agreed in the contract. Battery cycle life, LED theoretical lifetime, solar panel service life, and pole structural service life are different figures stated by suppliers for individual components under ideal lab conditions. Buyers should read the warranty terms carefully and understand which components are covered for what period. Extended warranty applies only when explicitly specified in the PI or sales contract.
6. Buying Without Documentation
Before committing to a supplier, verify certifications, test data, and export experience. Confirm the IES photometric file is for the same fixture, the same LED configuration, and the same driver setting as your order. If documentation cannot be provided, consider that a red flag.
6. MCL Solar Practical Perspective
Zhongshan Chengyu New Energy Technology Co., Ltd. (MCL Solar) offers split-type solar street lights designed specifically for these taller-pole applications. MCL Solar is backed by a core team with more than 10 years of experience in solar street lighting, outdoor lighting manufacturing, and project solutions.
From the product range, the relevant split-type options include:
- The M-Series Solar Street Light (25W–40W) for smaller municipal or secondary road applications.
- The M-Series / Project High-Power Series (40W–150W) for higher-power main road lighting.
- High-Power Split Solar Street Lights for 8–12m applications, configured explicitly for pole heights in this range.
MCL Solar also provides DIALux simulation and IES-based lighting design support for applicable projects. This allows buyers to verify that the proposed system achieves the required target lux and uniformity before any hardware is shipped. For smart city requirements, selected systems support remote dimming, status monitoring, fault alerts, and platform management through 4G, LoRa, WiFi, or other project-specific protocols.
The company offers OEM/ODM services and holds an ISO 9001 certificate, maintaining a quality management system for manufacturing and project engineering. Buyers should request the applicable datasheets, test reports, and project references and verify them against the exact configuration being quoted.
7. FAQ
Q1: Can an all-in-one solar street light be used for a 10m pole?
A: In practice, it is not recommended. An all-in-one unit for a 10m pole would require a large PV panel and battery integrated into one housing at the top of the pole. This creates excessive wind load, poor battery thermal environment, and significant maintenance difficulty. Split-type designs are the accepted engineering solution for pole heights above 8m and power levels above 40W.
Q2: How many watts do I need for a 10m to 12m pole?
A: Wattage alone is not the deciding factor. The required wattage depends on the lumen output of the luminaire, road width, pole spacing, target lux, and optical distribution. As a rough guide, a 10m pole for a two-lane road typically requires a 60W to 100W LED luminaire with a proper street-light distribution. For a 12m pole, 100W to 150W is common. However, verify with IES data and a lighting simulation rather than relying on wattage estimates.
Q3: What is the difference between all-in-one, all-in-two, and split-type solar street lights?
A: All-in-one units integrate the PV panel, battery, controller, and LED lamp in a single housing. All-in-two systems typically separate the PV panel from the lamp-and-battery unit. Split-type systems separate all major components individually: the PV panel is mounted independently, the battery is placed in a separate enclosure, and the LED luminaire is fixed separately. For 10–12m poles, split-type is the most flexible and reliable.
Q4: Does MCL Solar provide lighting design or simulation?
A: Yes. MCL Solar can provide DIALux simulation and IES-based lighting design support for applicable projects. Buyers should provide the road geometry, pole spacing, mounting height, and target lux so the correct configuration can be proposed.
Q5: Can smart features be added to a split-type solar street light?
A: Selected MCL Solar systems support remote dimming, status monitoring, fault alerts, and platform management through communication options such as 4G, LoRa, WiFi, or other project-specific protocols. Confirm the availability of these features for the specific configuration and project requirements.
Q6: What is the standard warranty?
A: The standard warranty for MCL Solar products is 5 years. Extended warranty is available only when explicitly specified in the PI or sales contract. The warranty covers the complete system as defined in the agreement; separate component lifetimes such as battery cycle life or LED theoretical lifetime should not be confused with the system warranty.
Q7: How do I know if the proposed solar street light will work at my site?
A: Provide the supplier with the project location, road width, pole spacing, operating hours, autonomy days, and any coastal or high-wind conditions. Ask for the IES file, battery capacity calculation, PV sizing calculation, and a DIALux simulation showing the expected lux and uniformity. Verify this documentation before procurement.
8. Conclusion
For 10m to 12m poles, split-type solar street lights are the engineering answer. They deliver the lumen output, structural safety, thermal performance, and maintenance practicality that all-in-one units cannot provide at this scale. The decision should not be based on wattage alone. Compare complete-luminaire lumen output, IES distribution, battery capacity with autonomy, thermal design, and wind-load characteristics. Request verifiable documentation for each of these factors before committing to a supplier.
Buyers who skip these checks risk installing an undersized, unreliable, or structurally unsafe lighting system. Buyers who do the engineering homework will get a solar street lighting system that delivers consistent illumination for years.
If you are planning a project with 10m to 12m poles and need assistance with product selection, system configuration, IES photometric data, DIALux simulation, OEM/ODM, technical documentation, or project engineering support, the team at Zhongshan Chengyu New Energy Technology Co., Ltd. (MCL Solar) can help.
To receive a project-specific proposal, please provide the following information:
- Country / city
- Application (e.g., municipal road, industrial zone, port, campus)
- Road width
- Pole height
- Pole spacing
- Project quantity
- Target lux or lumen requirement
- Operating hours
- Rainy-day autonomy
- Coastal / high-wind / high-temperature conditions
- BOQ, drawings, or tender specifications
Contact MCL Solar directly:
- Email: sales@mclsolar.com
- WhatsApp: +86 18030335122
- Website: https://mclsolar.com
Submit your project details and receive a configuration recommendation backed by engineering data and verified technical documentation.

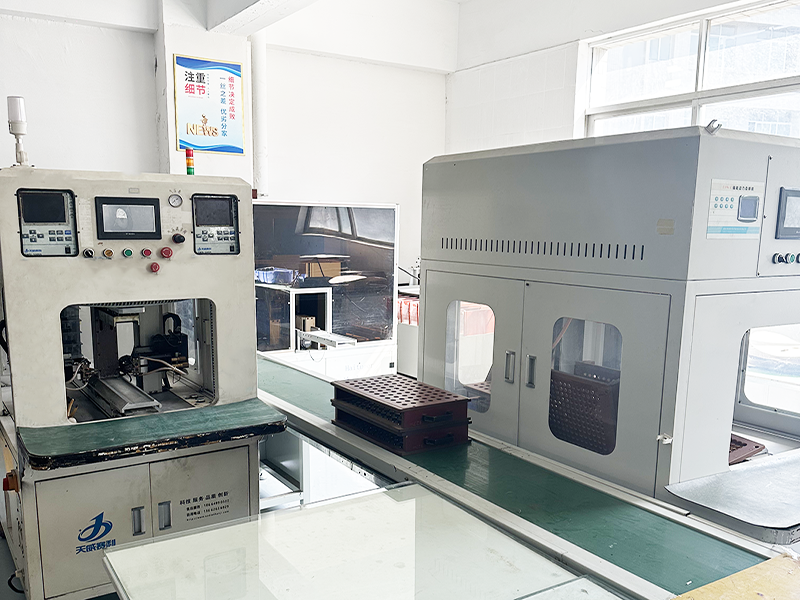

Engineering & Manufacturing Verification at MCL Solar
