Case Study: Philippines Archipelago Municipal & Coastal Highway Solar Lighting Cluster (Cebu & Iloilo)

1. Project Cluster Overview & Technical Bill of Quantities (BOQ)

Unlike inland continental installations, island deployments require compartmentalized hardware architectures. The schedule below details the three representative municipal projects deployed under this Philippine infrastructure framework:

2. Engineering Challenge 1: Marine Salt-Spray & Typhoon Forces along Cebu Coastal Highway

The Roxas coastal highway in Cebu runs directly along the sea wall, where crashing waves generate dense saline aerosol. In standard municipal installations, uncertified powder-coated poles and thin sheet metal luminaires corrode within 18 months, causing structural flaking, bracket rust-seizure, and catastrophic short circuits.

Figure 1: Cebu Provincial Coastal Highway: 85 sets of MCL-SP100W split solar street lights operating with ASTM B117 anti-salt-spray coating directly over the seawall crash zone.

MCL Engineering Anti-Corrosion Protocol (ASTM A123 + ASTM B117):

• Dual-Layer Barrier Protection: Pole shafts undergo comprehensive hot-dip galvanization at 450°C to achieve a minimum zinc layer thickness of ≥86 μm (conforming to ASTM A123 / EN ISO 1461). Subsequently, a marine-grade C5-M fluorocarbon electrostatic powder coat (80-100 μm) is oven-cured at 200°C to withstand over 1,000 hours of continuous salt-fog testing (ASTM B117).
• Marine Grade 316 Stainless Fasteners: All bracket clamp bolts, PV tilt joints, and luminaire fasteners are strictly specified in marine-grade AISI 316 stainless steel to eliminate galvanic corrosion between dissimilar metals.
• Subterranean IP68 Battery Vault: Unlike split lights with battery boxes hung exposed high on the pole where sea winds induce harmonic vibrations, the Cebu project utilizes subterranean sealed rotomolded IP68 battery compartments placed below grade. This shields the Grade-A LiFePO4 cells from ambient temperature extremes and storm gales.

3. Engineering Challenge 2: Monsoon Rainy Autonomy & Typhoon Resilience across Iloilo Rural Roads

Iloilo Province lies within the typhoon belt and experiences intense inter-tropical convergence zone (ITCZ) precipitation. During peak rainy season from June to November, local roads endure 5 to 7 consecutive days of thick cloud cover with zero direct sunlight. Standard AC street lighting networks suffered frequent blackouts due to fallen utility lines, leaving rural residents stranded in darkness.

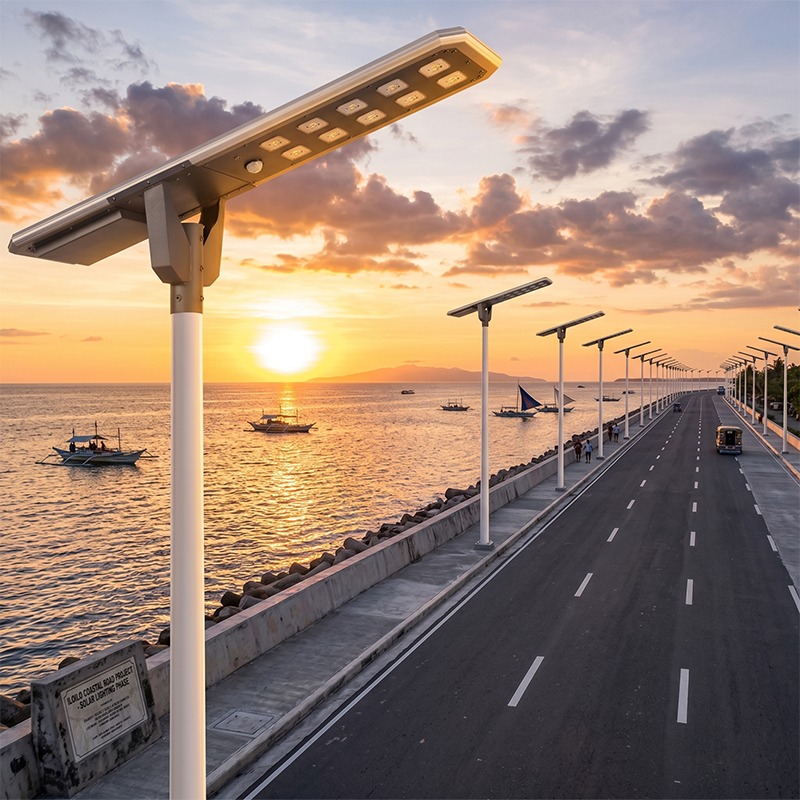

Figure 2: Iloilo Coastal Road: 80W integrated all-in-one solar street lights operating dusk-to-dawn, providing reliable off-grid illumination across fishing communities and provincial arteries.

The 5-7 Day Autonomy Power Management Architecture:

1. Monocrystalline PV Harvesting (22.8% Conversion Efficiency): High-efficiency monocrystalline cells with anti-reflective nanocoating ensure diffuse light absorption even during overcast and drizzle conditions, generating charging current as low as 15% solar irradiance.
2. Patented MPPT Dynamic Tracking (>99% Efficiency): The integrated MPPT controller operates with continuous step-up/step-down algorithms to capture every milliampere of energy during monsoon daylight hours.
3. 4-Stage Smart Step-Down Dimming Algorithm:
   • Hours 1-4 (Peak Evening Traffic 18:00 – 22:00): 100% full brightness (15,200 lumens) to maximize driver vision and pedestrian safety.
   • Hours 5-8 (Mid-Night 22:00 – 02:00): 50% continuous brightness, instantly ramping to 100% upon microwave radar motion detection.
   • Hours 9-11 (Pre-Dawn 02:00 – 05:00): 30% ambient saving power mode, ramping to 80% on vehicle motion.
   • Hour 12 (Dawn Rush 05:00 – 06:00): 60% boost brightness until photocell automatic sunrise shutdown.

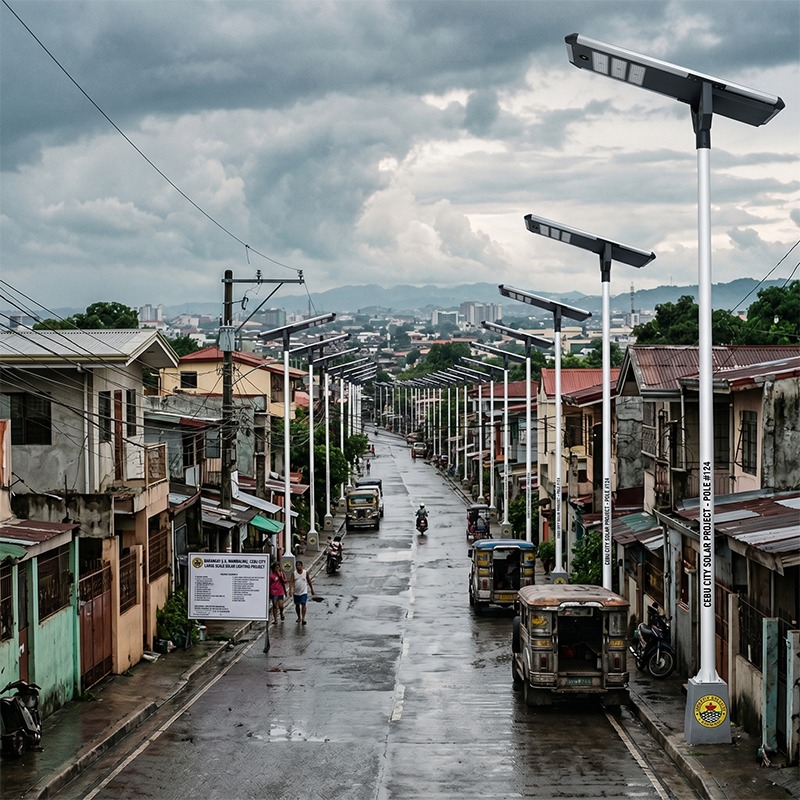

Figure 3: Cebu City Barangay Mambaling: Serialized municipal pole installation (Pole #124) operating flawlessly along high-density residential access routes.

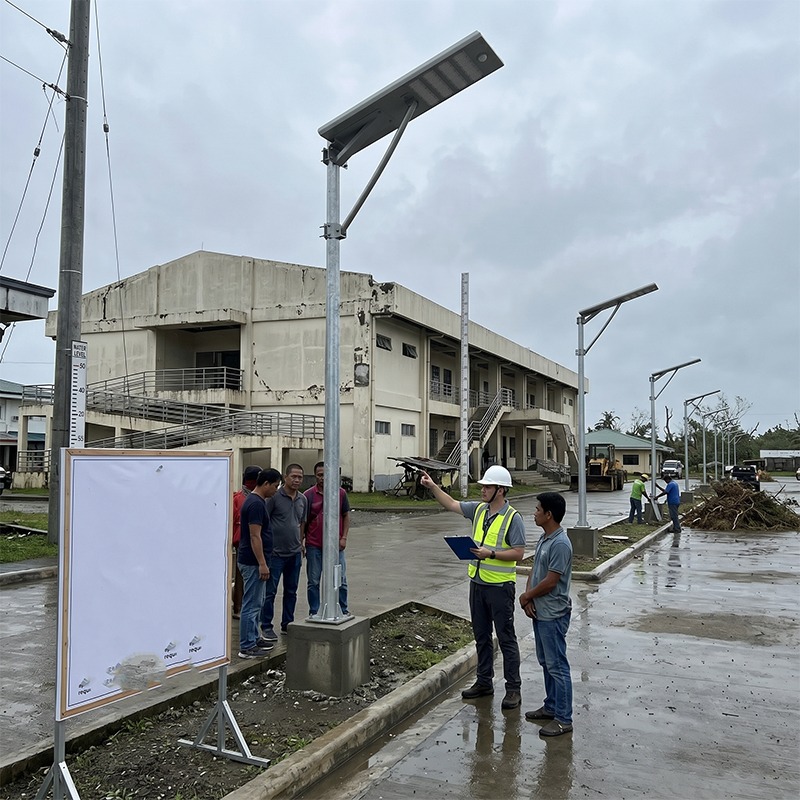

Figure 4: Field Installation Audit: MCL engineering supervisor and local LGU technical team verifying foundation bolt torque during typhoon season.

4. Community Sports Hubs: 200W Solar Floodlight Arrays for Night Basketball & Emergency Relief

In Philippine barangay culture, the local open-air basketball court serves as the social epicenter and the primary disaster relief evacuation center during major typhoons. Grid failure during catastrophic storms routinely plunged community shelters into complete darkness. The LGU required high-power solar floodlighting capable of meeting FIBA amateur basketball illumination while guaranteeing uninterrupted emergency lighting when utility grids collapse.

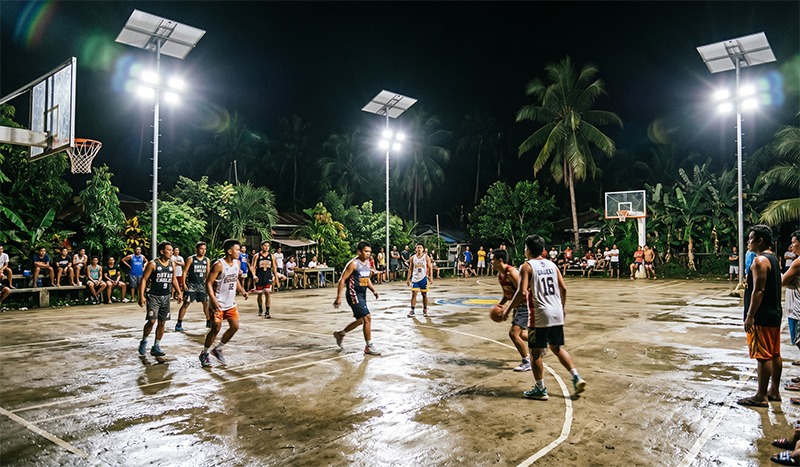

Figure 5: Davao Barangay Sports Complex: 36 units of MCL 200W solar floodlight systems delivering uniform >150 Lux nighttime illumination for competitive barangay league matches.

Photometric & Electrical Engineering Highlights:

• Asymmetric Type III Optical Beam: Engineered with precision optical PMMA lenses that project light downward and outward across the 28m × 15m playing court, minimizing spill light into adjacent residential homes while preventing player glare during jump shots and rebounds.
• Ground Uniformity Ratio (U0 ≥ 0.5): Eliminates dangerous shadows, achieving an average illuminance of 155 Lux across the playing surface.
• High-Capacity 25.6V Energy Bank: Equipped with a 2,560 Wh Grade-A LiFePO4 battery pack, the system sustains 6 hours of unthrottled 100% luminous output (38,000 lumens per court side), followed by smart safety standby until morning.
• Dual-Role Disaster Shelter Capability: In the event of grid blackout, court floodlights automatically engage at dusk, providing a fully illuminated staging ground for first responders, medical tents, and community food distribution.

5. Official DPWH Compliance & Accredited Laboratory Verification

Municipal infrastructure procurement in the Philippines is governed by strict statutory criteria. All MCL Solar systems supplied to Cebu, Iloilo, and Davao comply with the statutory guidelines of the Department of Public Works and Highways (DPWH) and international testing protocols:

6. Sourcing & Engineering Inquiry for Philippine EPC Contractors

Whether preparing municipal bids under DPWH guidelines, provincial island highway tenders, or barangay electrification programs, MCL Solar provides complete tender support packages including DIALux photometric calculations, wind load structural simulations, foundation engineering drawings, and direct factory-direct FOB/CIF container shipping to Manila, Cebu, and Davao ports.
