Municipal road networks and high-speed transit corridors require structural integrity that guarantees decades of zero-maintenance operation under punishing wind, vibration, and environmental stress. When national engineering procurement contractors and municipal transport directorates evaluate tenders for cross-border expressway illumination, partnering with a genuine, vertically integrated steel lighting poles manufacturer is the single most critical factor in project viability. A structural failure at 12 meters in height or corrosion-induced metal fatigue along an arterial highway carries catastrophic public safety and financial liabilities.

Under the competitive framework of the Municipal Roadways Modernization Initiative (RFQ Ref: RFQ-2026-SLP-800), MCL Solar was awarded the manufacturing mandate for 800 complete heavy-duty structural steel poles and high-mast towers, alongside 1,600 high-efficiency LED luminaires. Destined for shipment via CIF Mersin Port, Turkey with direct transit routing to regional arterial corridors, this project highlights how verified in-house automated fabrication, S355JR structural steel, 20mm gusset-reinforced base plates, and ASTM A123 heavy-duty hot-dip galvanization outperform generic trading intermediaries and unverified assemblers.

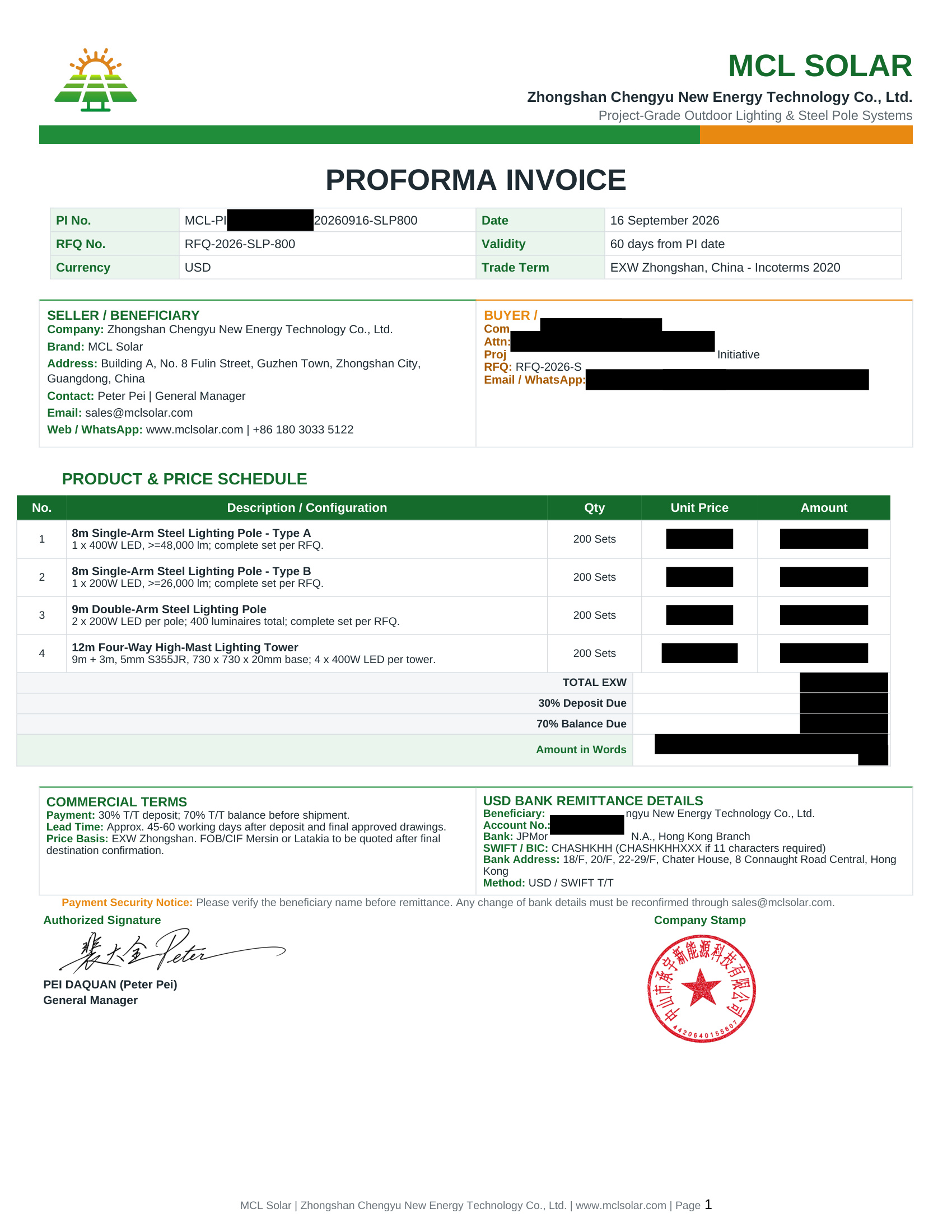

Figure 1: Official Proforma Invoice (PI Ref: MCL-PI-20260916-SLP800) confirming 800 turnkey sets of municipal steel lighting poles and 1,600 LED luminaires for the Turkey-Levant roadway initiative (commercial pricing and client corporate particulars redacted for strict institutional confidentiality).

1. Project Scope & Bill of Quantities (BOQ): 4 Heavy-Duty Configurations

Municipal roadway bids require rigorous standardization across varied geometric road profiles—from single-lane collector roads to 8-lane divided highways and multi-level grade-separated junctions. The RFQ-2026-SLP-800 tender divided the 800-unit requirement into four distinct engineering configurations:

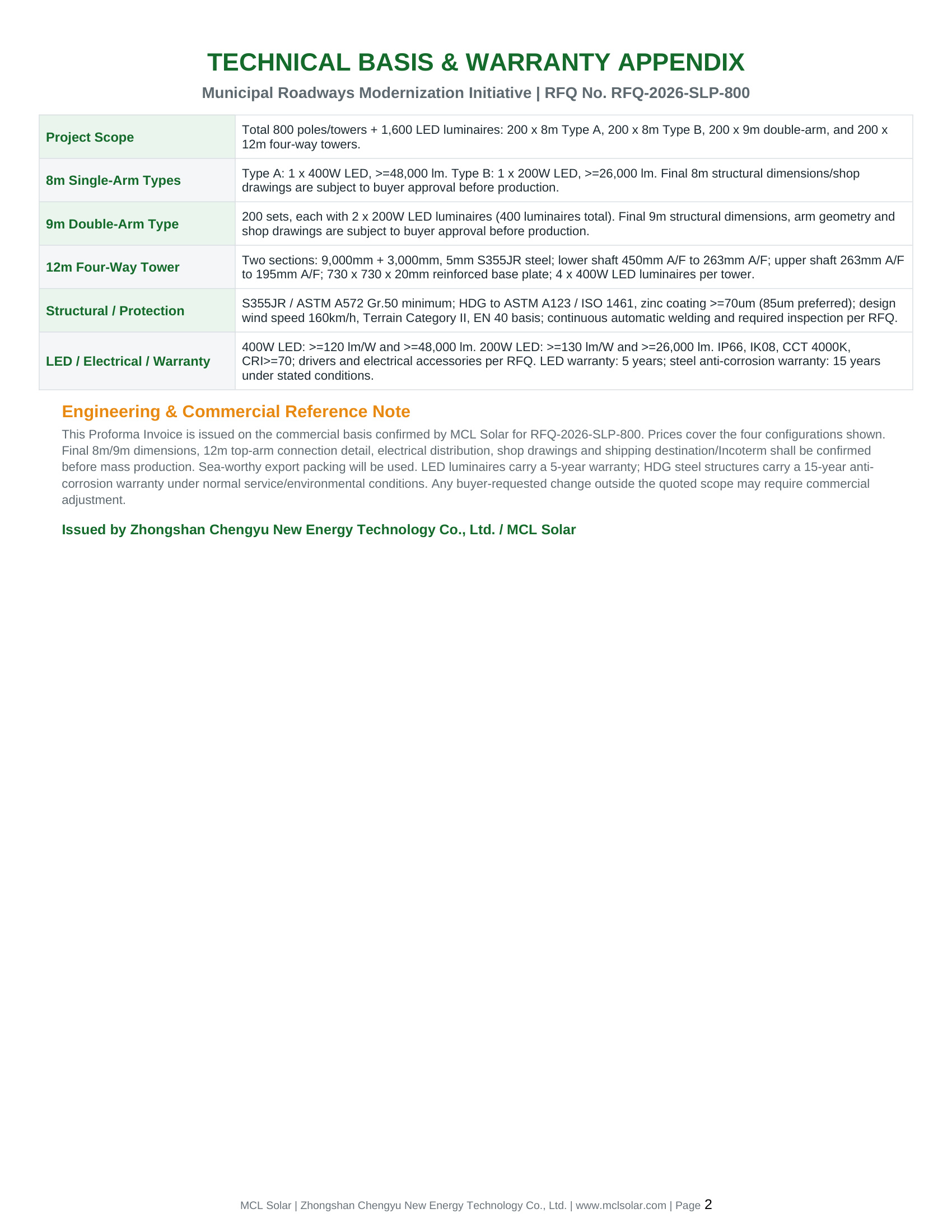

Figure 2: Page 2 of confirmed engineering specifications (RFQ-2026-SLP-800) detailing S355JR high-strength alloy, ASTM A123 hot-dip galvanization (≥85 μm), 160 km/h wind design per EN 40, and 15-year anti-corrosion structural warranty.

2. Structural Engineering: S355JR Steel & 160 km/h Wind Resistance (EN 40 Standard)

A primary failure mode in large-scale municipal bids stems from suppliers using substandard commercial commercial-grade Q235 steel or uncalibrated bending presses. As an established steel lighting poles manufacturer, MCL Solar constructs every 8m, 9m, and 12m structure in compliance with EN 40-3-1 (Specification for characteristic loads) and EN 40-3-2 (Verification by calculation).

For municipal highway applications, our engineering team selects S355JR high-yield structural steel (minimum yield strength \(R_e \ge 355 ext{ MPa}\), ASTM A572 Grade 50 equivalent) rather than standard Q235 carbon steel (\(R_e pprox 235 ext{ MPa}\)). The mechanical advantages are substantial:

• 51% Higher Bending Resistance: S355JR withstands dynamic wind-induced harmonic oscillations and heavy luminaire dead loads without plastic deformation or joint weld micro-fracturing.
• Extreme Wind Load Capacity (160 km/h): Engineered for Terrain Category II with a gust factor of 1.4, ensuring that maximum deflection at the pole top remains within \(\delta \le 0.04 imes H\) under peak wind pressure.
• Submerged Arc Longitudinal Welding: Continuous automated single-pass longitudinal seam welding achieves full penetration (AWS D1.1 structural welding code), validated by 100% visual inspection and ultrasonic flaw detection (UT) on high-stress sections.

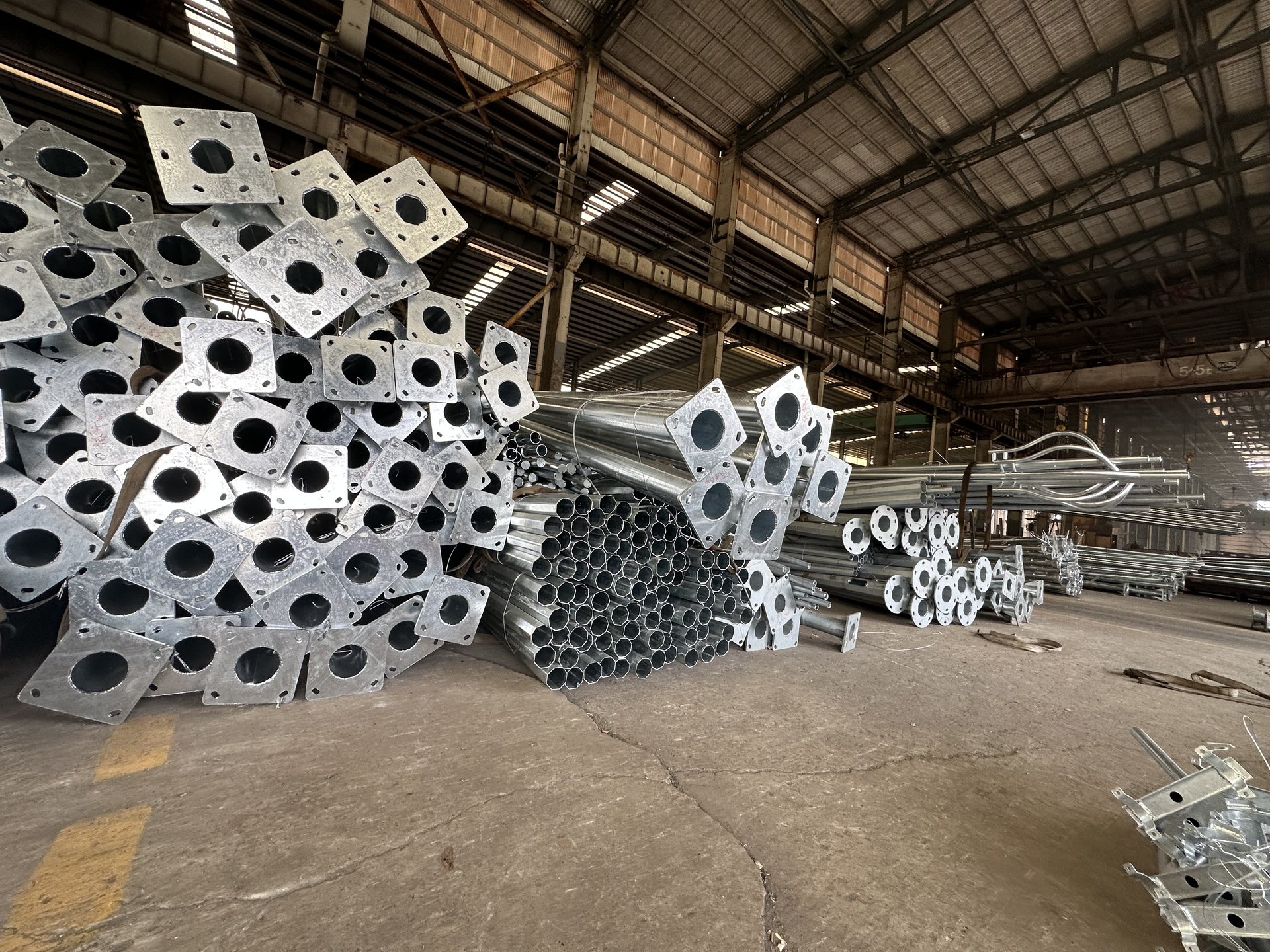

Figure 3: Heavy-duty octagonal conical poles staged across the fabrication bays of MCL Solar’s 35,000 m² Guzhen industrial facility following ASTM A123 hot-dip galvanizing.

3. 12-Meter High-Mast Light Tower: Dual-Section Mechanics & Flange Coupling

The flagship engineering challenge in RFQ-2026-SLP-800 was Item 4: 200 sets of 12-Meter Four-Way High-Mast Light Towers. Each tower supports four 400W LED luminaires (1,600W total, generating 192,000 lumens) designed to illuminate large cloverleaf interchanges, toll plazas, and multi-lane border checkpoints.

Shipping a 12-meter single-piece pole internationally creates extreme containerization logistics issues (exceeding standard 40ft High Cube container internal lengths of 12.03m when base plates and arm brackets are attached). MCL Solar solved this through an engineered dual-section flange-coupled architecture:

• Lower Shaft (9,000mm): Fabricated from 5.0mm thick S355JR plate, tapering from 450mm Across-Flats (A/F) at the base to 263mm A/F at the upper connection point. Features an internal reinforced service door with tamper-proof security locks and neoprene weather-sealing gaskets (IP54 enclosure rating).
• Upper Shaft (3,000mm): 5.0mm wall thickness tapering from 263mm A/F to 195mm A/F at the luminaire mounting head, topped by a 4-way curved radial ring assembly designed for vibration-damped luminaire mounting.
• Intermediate Flange Joint: Precision-machined circular flange plate (\(arnothing 500 ext{ mm} imes 10 ext{ mm}\) thickness) reinforced with 8 radial gusset stiffeners (\(60 ext{ mm} imes 120 ext{ mm} imes 6 ext{ mm}\)) and secured by 8 Grade 8.8 hot-dip galvanized M20 high-tensile structural bolts.

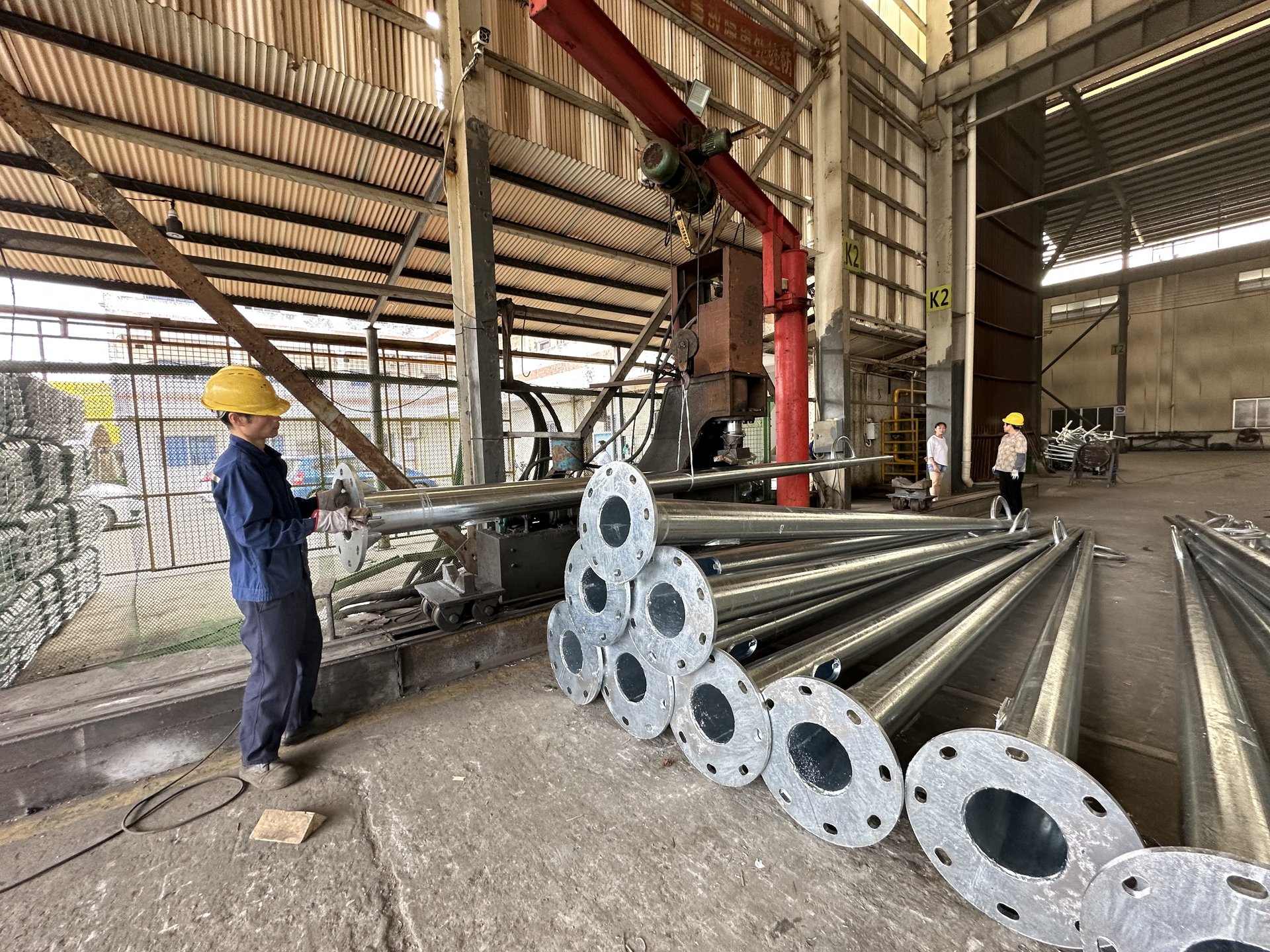

Figure 4: MCL Solar structural technician verifying flange bolt-circle tolerances and axial alignment for the 12-meter dual-section high-mast coupling on the factory calibration rig.

4. Foundation Mechanics: 20mm Stiffened Base Plate & 10x T12 Rebar Cage

A lighting pole is only as dependable as its base anchoring system. Catastrophic overturning failures in severe storms almost universally occur at the base plate weld or anchor bolt interface. To prevent fatigue cracking from cyclic wind-induced vortex shedding, MCL Solar upgraded the base plate assembly:

• 730 × 730 × 20mm Solid Base Plate: CNC-plasma cut from 20mm thick S355JR structural plate, featuring an oversized \(arnothing 150 ext{ mm}\) central conduit opening for heavy power cabling.
• 8 Triangular Stiffeners (Gussets): Measuring \(150 ext{ mm} imes 310 ext{ mm} imes 20 ext{ mm}\), each gusset is continuously welded between the octagonal pole facets and the base plate, transferring overturning bending moments directly into the foundation concrete.
• Heavy Anchor Cage: 8 Grade 8.8 hot-dip galvanized M24 anchor bolts embedded within a reinforced concrete cage consisting of 10 T12 main vertical rebars and heavy spiral stirrups, cast into Class C30/37 foundation concrete.

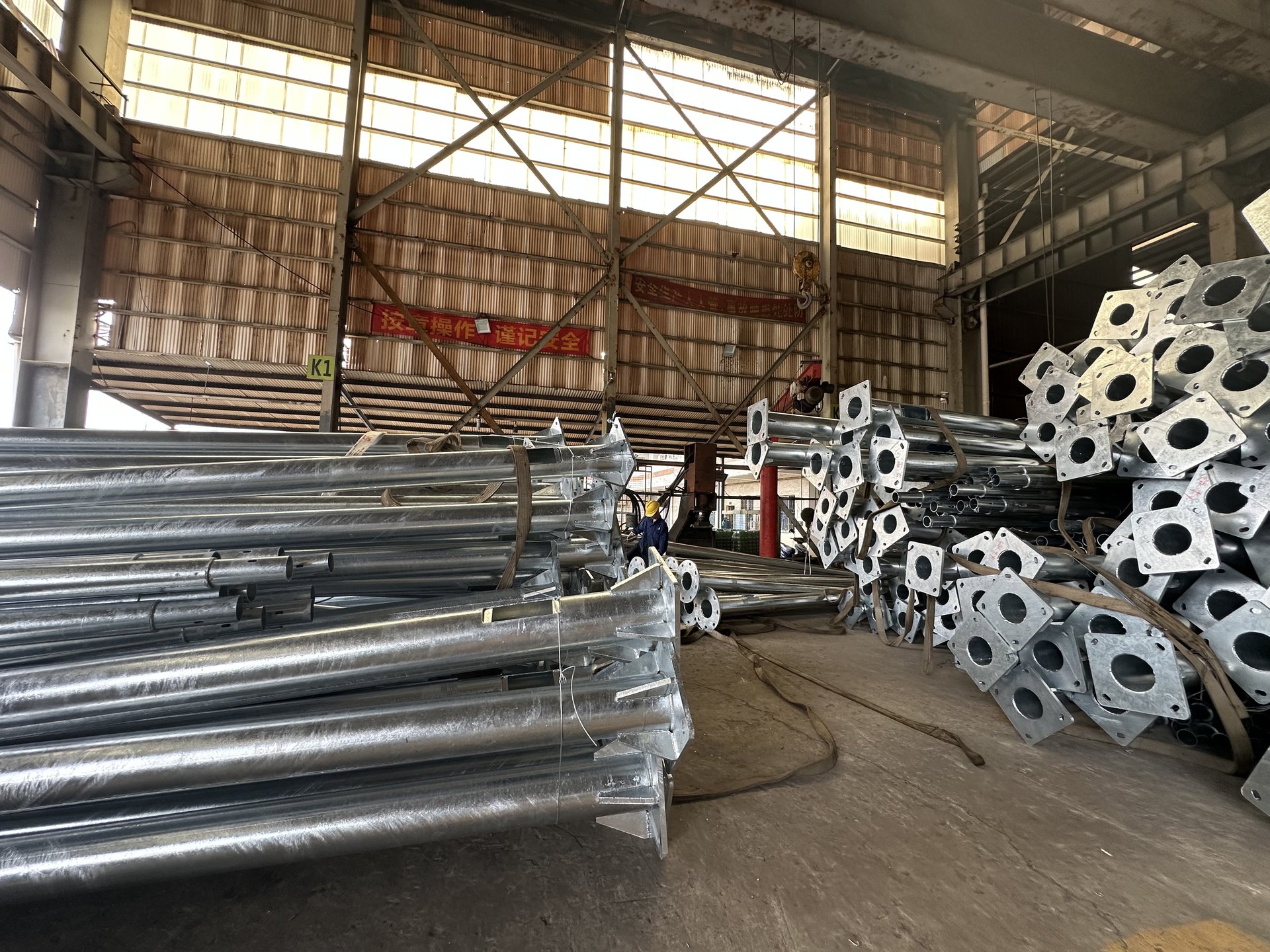

Figure 5: Heavy-duty 20mm base plates with 8 integrated gusset stiffeners welded to octagonal pole shafts, providing robust overturning moment resistance for 160 km/h wind zones.

5. Corrosion Protection: ASTM A123 / ISO 1461 Hot-Dip Galvanizing (≥85 μm)

For lighting infrastructure installed near coastal transit corridors such as the Port of Mersin and Mediterranean coastal highways, atmospheric salinity and airborne sulfur present severe C4 to C5-M corrosive environments. Low-cost vendors frequently offer cold electro-galvanizing (\(<15\ \mu ext{m}\) zinc) or superficial spray paint that peels within two years, initiating catastrophic internal oxidation.

As a certified steel lighting poles manufacturer, MCL Solar enforces strict compliance with ASTM A123 / ISO 1461:

1. Multi-Stage Chemical Pretreatment: Full immersion caustic degreasing, hydrochloric acid pickling to remove all mill scale and rust, followed by ammonium chloride fluxing to ensure pristine metallurgical wetting.
2. Deep Molten Zinc Immersion (+450°C): Shafts and accessories are submerged in molten zinc baths, creating four distinct zinc-iron alloy metallurgical layers (Gamma, Delta, Zeta, and Eta outer zinc). This metallurgical bond exhibits hardness exceeding that of the underlying base steel.
3. Guaranteed Zinc Coating Thickness (≥85 μm): Measured with calibrated magnetic eddy-current gauges across multiple points, exceeding the standard 70 μm threshold to ensure a verified 15-year anti-corrosion structural warranty.
4. Zero Post-Galvanizing Modification: Strict manufacturing protocols dictate that zero drilling, cutting, or field welding is permitted following galvanization, preserving the seamless protective envelope.

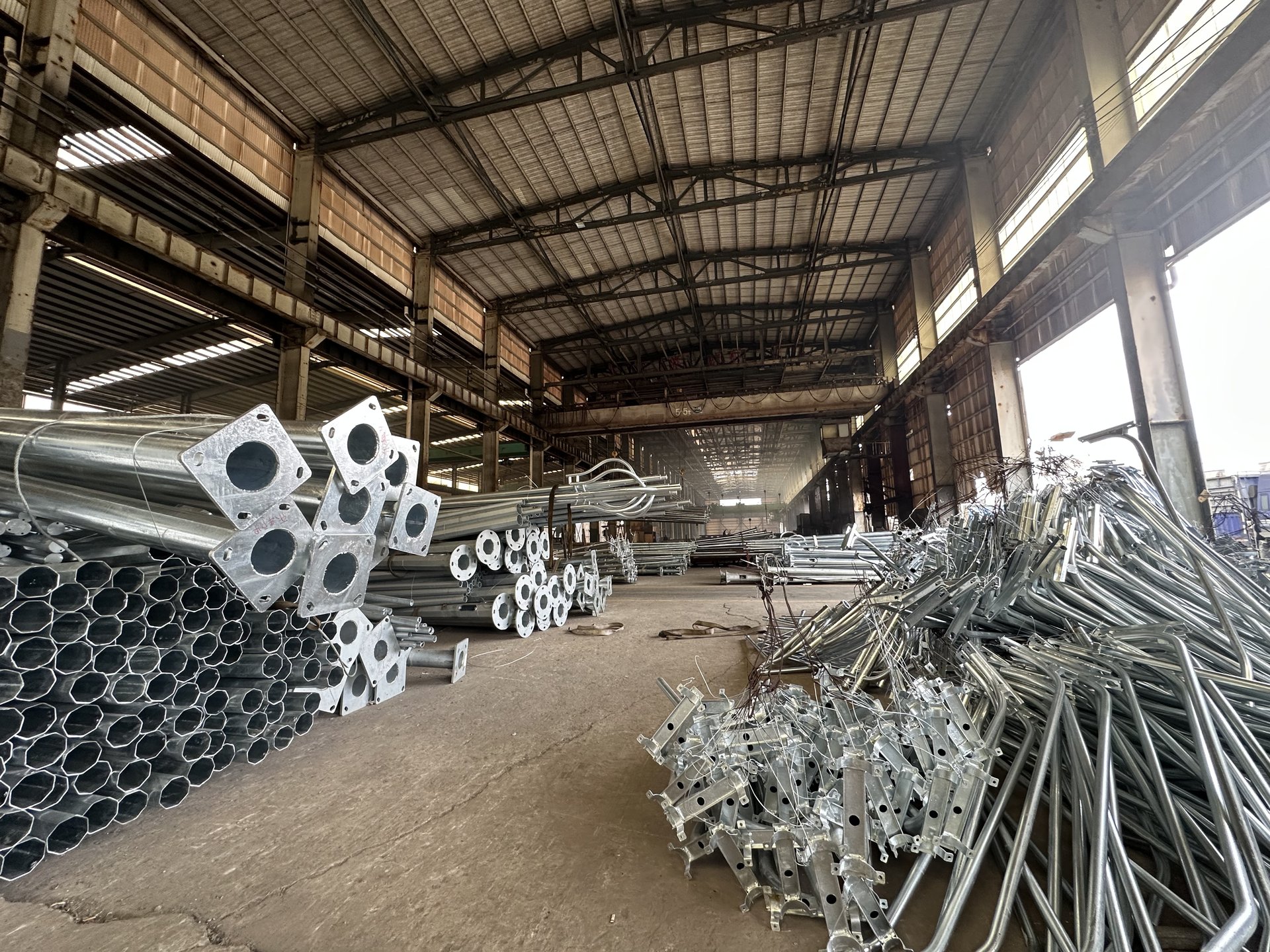

Figure 6: Hot-dip galvanized double-arm brackets, curved cantilever extensions, and mechanical mounting accessories staged in MCL Solar’s hardware staging bay.

6. High-Efficiency LED Optics: 400W & 200W Luminaires with 10kV SPD Protection

To complement the heavy-duty structural steelwork, MCL Solar integrated 1,600 units of IP66 / IK08 certified roadway luminaires:

• 400W Luminaire (Item 1 & Item 4): Emitting \(\ge 48,000 ext{ lumens}\) (\(\ge 120 ext{ lm/W}\)), utilizing high-flux multi-die Bridgelux / Philips LED arrays with Type II-M and Type III-M batwing asymmetric optical lenses. Provides uniform illuminance (\(U_0 \ge 0.40\)) across 4- to 6-lane expressways without blind-zone glare.
• 200W Luminaire (Item 2 & Item 3): Emitting \(\ge 26,000 ext{ lumens}\) (\(\ge 130 ext{ lm/W}\)), engineered for 8m to 9m mounting heights on collector avenues and dual-arm median configurations.
• Heavy Surge Protection (10kV/10kA SPD): Industrial-grade Class I + Class II surge protection devices (Meanwell / Inventronics driver integration) shield electronic drivers from grid fluctuations and open-sky atmospheric lightning strikes.
• Thermal Dissipation Architecture: Die-cast ADC12 aluminum housings with aerodynamic convection cooling fins keep LED junction temperatures below \(T_j \le 65^\circ ext{C}\) under \(+45^\circ ext{C}\) ambient temperatures, guaranteeing \(L_{70} \ge 50,000 ext{ operating hours}\).

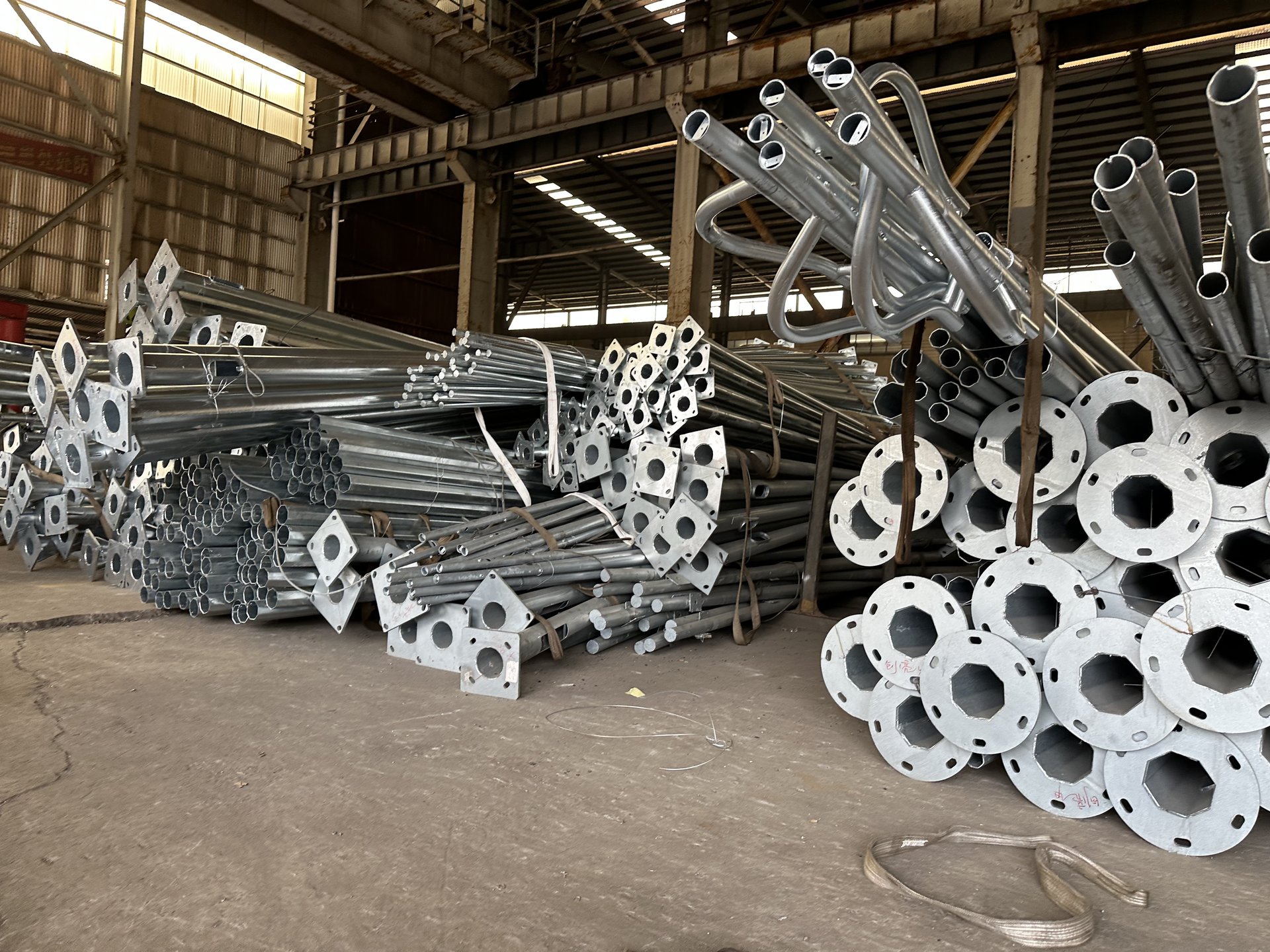

Figure 7: Bundled 8m and 9m octagonal poles alongside double-arm curved brackets prepared for sea-worthy export packing at the Guzhen loading terminal.

7. B2B Comparison Matrix: Genuine Manufacturer vs Trading Middleman vs Generic Competitor

Municipal tender committees frequently encounter wide pricing variations during procurement reviews. The engineering matrix below illustrates the critical differences between buying directly from a certified steel lighting poles manufacturer like MCL Solar versus trading brokers or low-end assembly workshops:

Figure 8: Overhead gantry cranes and heavy automated hydraulic bending stations across the 35,000 m² Guzhen manufacturing facility of MCL Solar.
