MCL SOLAR | EXTRUDED ALUMINUM SERIES

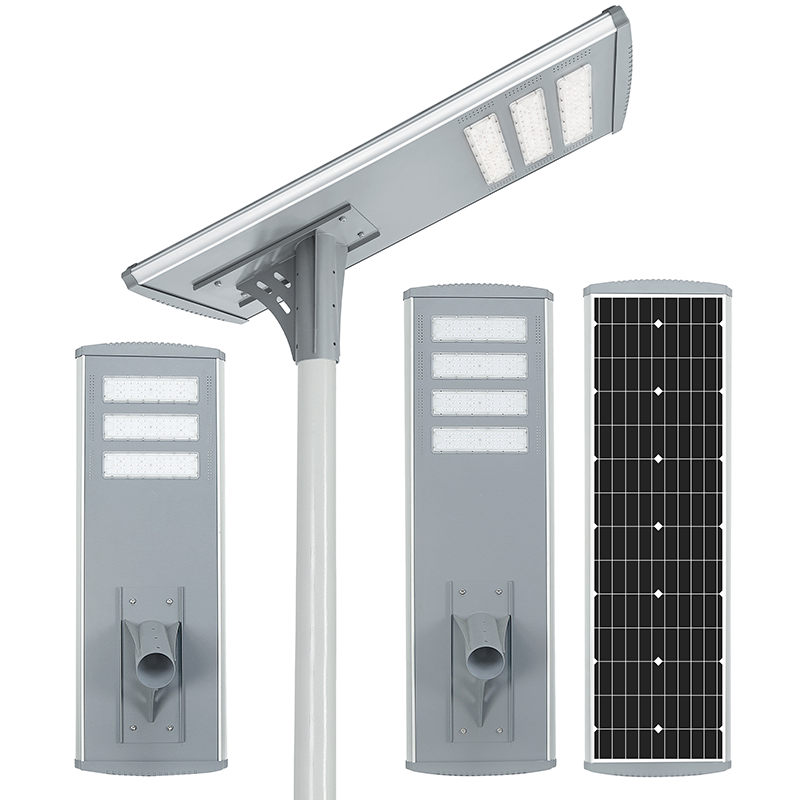

MCL-YTFQ100-250WAll-in-One Solar Street Light
- Extreme Climate Ready: Operating temp -40°C to 75°C, engineered for harsh environments.
- Premium Battery: >3500+ deep cycles DOD LiFePO4 battery with high capacity retention.
- High Efficiency: Delivers exceptional brightness up to >180lm/W.
- Smart Controller: IP68 Submersible MPPT with 99.9% tracking efficiency.
MOQ: 10 Sets | Starting at $20.00 / Set
Send Inquiry Now Technical Specifications
1. LED Lighting System
- LED BrandPhilips / Lumileds / Bridgelux
- Luminous Efficiency>180 lm/W
- Color Temp (CCT)3000K-7500K (Customizable)
- CRI>70
- Beam AngleType III
- LED Lifetime>100,000 Hours
2. Solar Panel
- Panel TypeMonocrystalline
- Conversion Efficiency23.8%
- Lifespan25 Years Warranty
- Surface Glass3.2mm Tempered
- IEC CertificateIEC61215 / IEC61730
3. Battery System
- Battery TypeLiFePO4
- BMS ProtectionSmart BMS (Built-in)
- Cycle Life (DOD)>3500+ Deep Cycles
- Capacity RetentionHigh Retention
- Working Temp.-40°C ~ 75°C
4. MPPT Controller
- Controller TypeMPPT (≥99.9% Eff.)
- Power EfficiencyCharge 95% / Drive 94%
- Dimming ControlMCU 5-Stage / Light+Time
- Communication2.4G / Infrared / TTL
- Protection LevelIP68 Submersible
- Smart BMSOvercharge / Short-circuit
5. Mechanical & Environment
- Housing MaterialADC12 Die-cast Aluminum
- Surface TreatmentAnodized & Powder Coat
- IP / IK RatingIP66 / IK09
- Wind Resistance150km/h (Typhoon)
6. Installation & Smart
- Mounting Dia.60-100mm (Custom)
- Install Height6m – 12m
- Pole Distance25m – 50m
- Smart Add-onsOptional (IoT / CCTV)
- Motion SensorOptional
Model Variations
| Model No. | Solar Panel | LiFePO4 Battery | Pole Height | Product Size (mm) | Unit Price (USD) |
|---|---|---|---|---|---|
| MCL-YTFQ100W | 60W / 6V | 3.2V 60Ah (192Wh) | 4 – 6 M | 920 x 400 x 54 | $00.00 |
| MCL-YTFQ150W | 70W / 6V | 3.2V 70Ah (224Wh) | 4 – 6 M | 1140 x 400 x 54 | $00.00 |
| MCL-YTFQ200W | 80W / 6V | 3.2V 80Ah (256Wh) | 4 – 6 M | 1440 x 400 x 54 | $00.00 |
