MCL SOLAR | EXTRUDED ALUMINUM SERIES

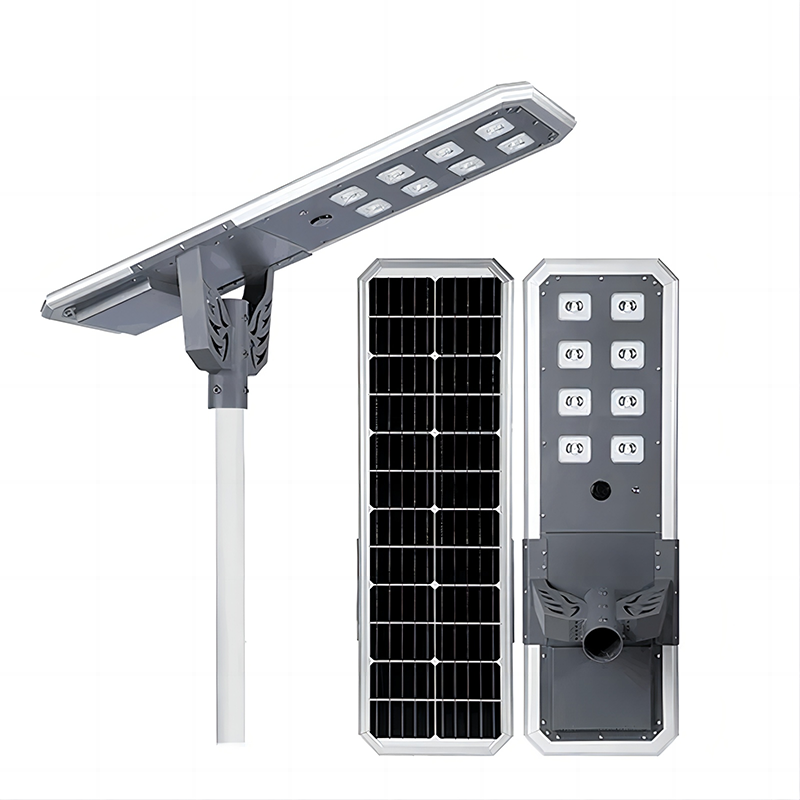

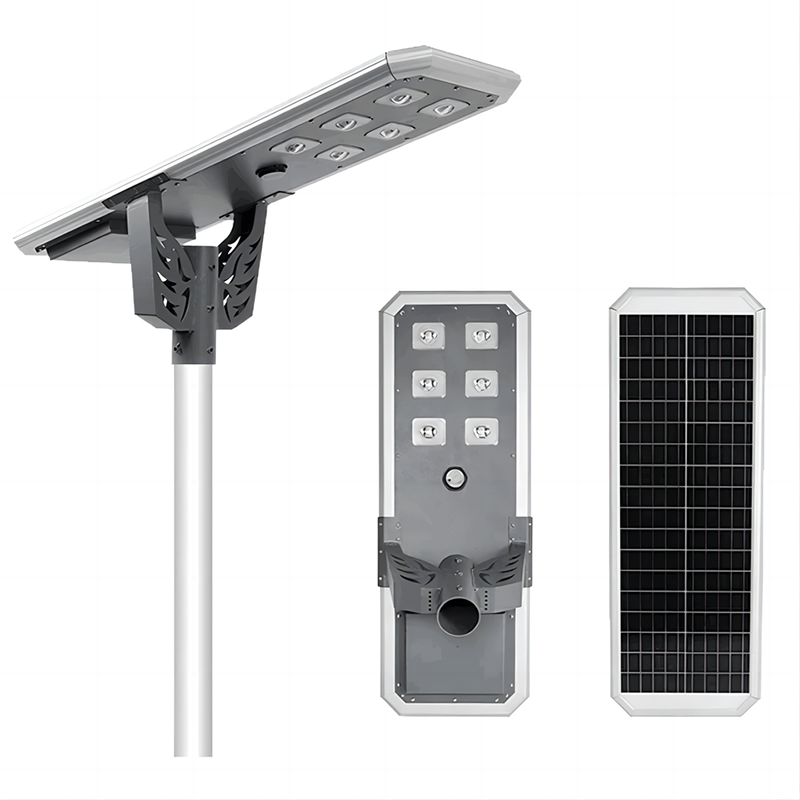

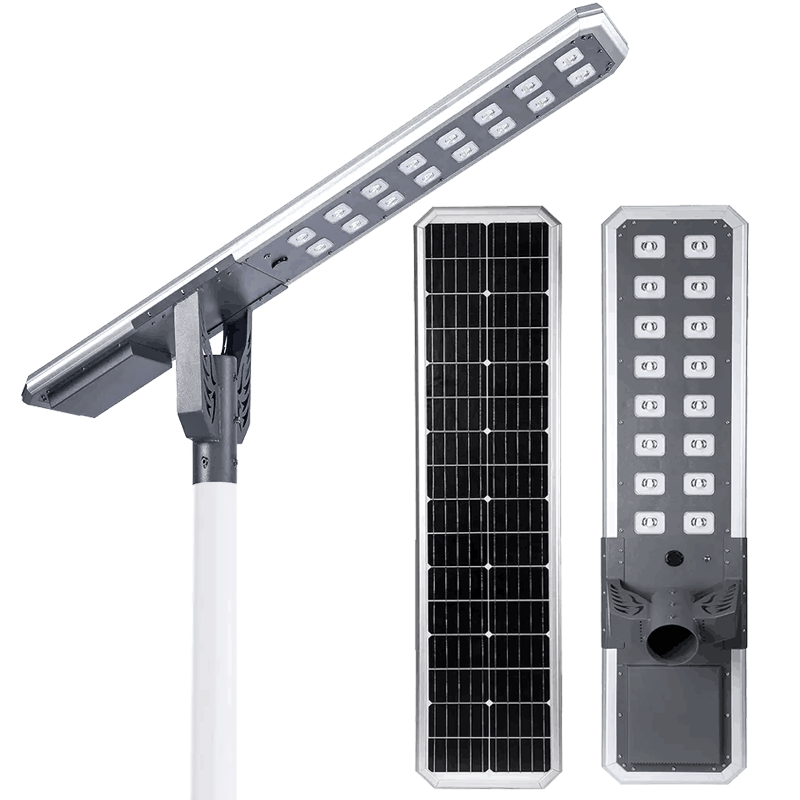

MCL-YT8J100W-800W-All-in-One Solar Street Light
- Extreme Climate Ready: Operating temp -40°C to 75°C, engineered for harsh environments.
- Premium Battery: >3500+ deep cycles DOD LiFePO4 battery; verify applicable battery configuration and test conditions.
- High Efficiency: Delivers exceptional brightness up to project-specific luminous efficacy data.
- Smart Controller: IP68 MPPT controller with up to 99.9% tracking efficiency; verify controller model and test report.
MOQ and project pricing: confirm by quotation
5-year warranty* applies only to eligible supplied configurations. Coverage, exclusions, response method and start date must be confirmed for the exact model, installation conditions and contract. Read the warranty policy.
Send Inquiry NowTechnical Specifications
1. LED Lighting System
- LED BrandPhilips / Lumileds / Bridgelux
- Luminous Efficiency>180 lm/W
- Color Temp (CCT)3000K-7500K (Customizable)
- CRI>70
- Beam AngleType III
- LED LifetimeModel-specific LED lifetime data
2. Solar Panel
- Panel TypeMonocrystalline
- Conversion Efficiency23.8%
- Warranty5-year warranty*
- Surface Glass3.2mm Tempered
- IEC CertificateIEC61215 / IEC61730
3. Battery System
- Battery TypeLiFePO4
- BMS ProtectionSmart BMS (Built-in)
- Cycle Life (DOD)>3500+ deep cycles DOD LiFePO4; verify battery configuration and test conditions.
- Capacity RetentionHigh Retention
- Working Temp.-40°C ~ 75°C
4. MPPT Controller
- Controller TypeMPPT (≥99.9% tracking efficiency; verify controller test data)
- Power EfficiencyCharge >99% / Drive 94%; verify controller test data
- Dimming ControlMCU 5-Stage / Light+Time
- Communication2.4G / Infrared / TTL
- Protection LevelIP68 controller protection; verify controller report
- Smart BMSOvercharge / Short-circuit
5. Mechanical & Environment
- Housing MaterialADC12 Die-cast Aluminum
- Surface TreatmentAnodized & Powder Coat
- IP / IK RatingIP66 / IK09
- Wind ResistanceProject-specific wind-load design; verify calculations
6. Installation & Smart
- Mounting Dia.60-100mm (Custom)
- Install Height6m – 12m
- Pole Distance25m – 50m
- Smart Add-onsOptional (IoT / CCTV)
- Motion SensorOptional
Model Variations
| Model No. | Solar Panel | LiFePO4 Battery | Pole Height | Product Size (mm) | Unit Price (USD) |
|---|---|---|---|---|---|
| MCL-YT8J100W | 40W / 18V | 160Wh | 3-6 M | 860*380*75 | On request |
| MCL-YT8J200W | 50W / 18V | 200Wh | 6-8M | 940*380*75 | On request |
| MCL-YT8J300W | 60W / 18V | 240Wh | 6 – 10 M | 1110*380*75 | On request |
| MCL-YT8J400W | 70W / 18V | 280Wh | 6 – 10 M | 1165*380*75 | On request |
| MCL-YT8J500W | 80W / 18V | 320Wh | 6 – 12 M | 1340*380*75 | On request |
| MCL-YT8J600W | 90W / 18V | 360Wh | 6 – 12 M | 1420*380*75 | On request |
| MCL-YT8J700W | 100W / 18V | 400Wh | 6 – 12 M | 1570*380*75 | On request |
| MCL-YT8J800W | 110W / 18V | 450Wh | 6 – 12 M | 1800*380*75 | On request |
