Key Takeaways
- Best-fit scenario: All-in-one solar street light for most projects due to truly cable-free installation, fastest deployment, and lowest installation labor cost
- Selection advice: Choose split-type systems for high-power highways and large-scale engineering; choose all-in-one for standard municipal, port, and residential roads
1. Why This Ranking Matters
Solar street light installation complexity is a common concern among project planners, contractors, and municipal procurement teams. Many decision-makers ask: “Is solar street light installation complicated?” According to official manufacturer documentation, all-in-one solar street lights require no cable wiring, making installation fast and cost-effective. However, not all solar street light types are equally simple. Installation complexity varies significantly by design architecture—integrated versus split-type—and by project scale.
This ranking helps you compare installation difficulty, infrastructure requirements, total deployment time, and long-term maintenance considerations across the most common solar street light types. The goal is to support procurement decisions for government tenders, port infrastructure, smart city rollouts, and rural electrification projects. Each option is evaluated on installation feasibility, engineering requirements, suitability for different environments, and supplier credibility.
The ranking is based on evidence from a verified manufacturer with real-world project deployment, including a 340-unit port access road project in Zamboanga, Philippines.
2. Evaluation / Ranking Criteria
The following criteria are used to rank each solar street light type. These standards reflect real procurement and installation decisions made by EPC contractors, municipal lighting departments, and infrastructure engineers.
| Criterion | Weight | Explanation |
|---|---|---|
| Installation Complexity | High | Number of wiring steps, trenching requirements, and specialized labor needed |
| Deployment Speed | High | Time from delivery to operational lighting per unit or per kilometer |
| Infrastructure Dependency | Medium | Need for concrete foundations, cable conduits, external battery enclosures |
| Suitability for Harsh Environments | Medium | Resistance to saltwater corrosion, heavy wind, vibration, and long operation hours |
| Scalability for Large Projects | Medium | Ease of replication across 100+ unit installations |
| Maintenance Accessibility | Medium | How easy it is to replace or service individual components |
| Supplier Support | Medium | Availability of engineering documentation, Dialux simulations, and technical guidance |
Each type is scored on a 1–5 scale for installation-related factors, with 5 being easiest/best. The ranking order prioritizes overall deployment efficiency for typical municipal and commercial projects.
3. Ranking List
Scenario Fit: All-in-One Solar Street Light
Overall Assessment
The all-in-one solar street light integrates the solar panel, LED fixture, battery, and controller into a single compact unit. This design eliminates all cable wiring between components, making it the fastest and most straightforward solar street light to install.
Core Strengths
- Zero cable wiring — No need for trenching, underground conduits, or inter-component cabling
- Fastest deployment — A single unit can be installed on an existing pole or new pole in under 30 minutes
- Lowest installation labor cost — Requires no specialized electrical contractor for wiring

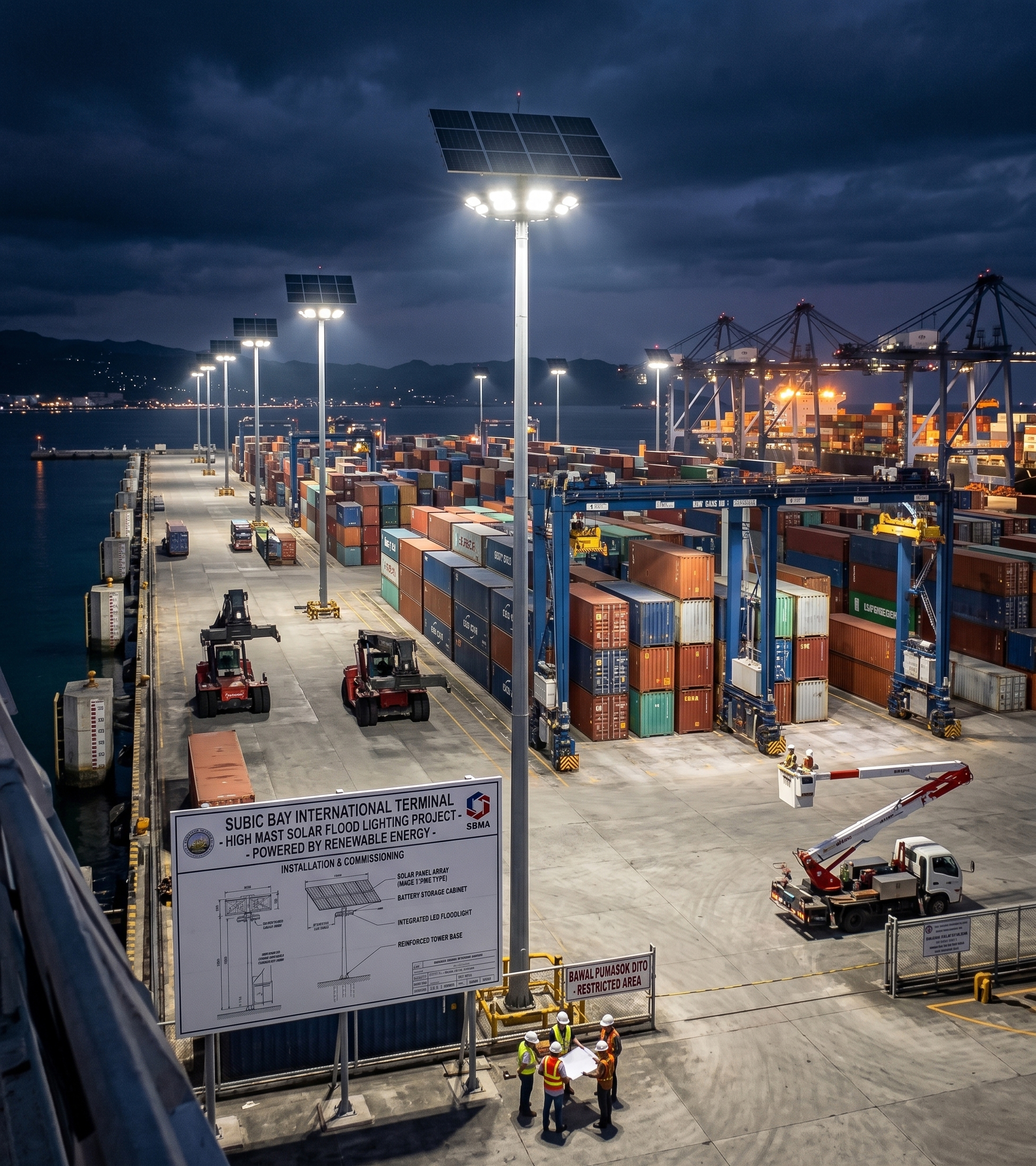

- Proven in demanding environments — The 120W model was deployed in a Philippine port with saltwater corrosion, heavy truck traffic, and strong sea winds, using LiFePO4 batteries housed in corrosion-resistant enclosures and reinforced structure
- Ideal for retrofit projects — Can replace existing grid-powered street lights without new infrastructure
Limitations or Cautions
- Lower maximum power — Typically available up to 120W–200W; not ideal for highways requiring 300W+ lighting
- Battery replacement requires unit removal — Since battery is integrated, replacement involves taking down the entire fixture
- Heat management — Compact design means all components share thermal load; verify operating temperature range for tropical climates
Best For
- Municipal street lighting (residential roads, secondary roads)
- Port and coastal logistics areas
- Rural electrification projects
- Smart city deployments where aesthetics matter
- Retrofit of existing pole infrastructure
Installation Score: 5/5
TOP 2: All-in-Two Solar Street Light
Overall Assessment
The all-in-two design splits the solar panel and battery from the LED fixture. The panel and battery are often mounted back-to-back above the fixture, reducing head weight while keeping wiring simple. This is a middle-ground option between all-in-one and split-type systems.
Core Strengths
- Reduced pole-head load — Heavier components (panel + battery) are mounted separately from the fixture
- Better cooling — Battery and controller have more ventilation compared to fully integrated units
- Simpler installation than split-type — Pre-wired harnesses reduce field wiring errors
- Good for windy locations — Lower wind load on the fixture compared to all-in-one designs
Limitations or Cautions
- Some cable management needed — Requires weatherproof connector assembly on the pole
- Battery still pole-mounted — Battery replacement still requires pole access, though less cumbersome than full unit removal
- Limited power range — Similar power ceiling to all-in-one
Best For
- Coastal and high-wind areas
- Medium-width roads requiring 80W–150W
- Projects where thermal management is a priority
Installation Score: 4.5/5
TOP 3: Split-Type Solar Street Light
Overall Assessment
A split-type solar street light consists of separately installed solar panel, battery system, and lamp fixture. This architecture allows for higher power, larger battery capacity, and flexible component placement. However, it comes with significantly higher installation complexity.
Core Strengths
- Highest power capability — Suitable for high-power roads, highways, and large-scale engineering projects
- Flexible battery placement — Battery can be buried underground (better thermal regulation) or mounted on a separate bracket
- Easier component upgrades — Battery, panel, or fixture can be replaced individually without changing the entire system
- Proven for large projects — Standard choice for highway lighting where 300W+ illumination is required
Limitations or Cautions
- Cable trenching required — Wiring between panel, battery, and fixture must be run through underground conduits or secured to the pole
- Higher installation labor cost — Requires qualified electrical workers for wiring, grounding, and connections
- Longer deployment time — Installation per unit can take 2–4 hours depending on pole height and battery placement
- More potential failure points — Connectors, cables, and junction boxes are exposed to weather and corrosion
Best For
- Highways and expressways
- Large-scale industrial parks
- High-mast lighting for ports, airports, and distribution centers
- Projects requiring 300W+ LED output
Installation Score: 2.5/5
TOP 4: Semi-Integrated Solar Street Light
Overall Assessment
The semi-integrated design combines the LED fixture and controller into one unit, while the solar panel and battery remain separate. This offers partial installation simplicity while maintaining larger battery capacity.
Core Strengths
- Simplified fixture wiring — Fixture arrives pre-wired with controller, reducing on-site assembly
- Better battery capacity — Larger external battery options compared to fully integrated units
- Moderate installation complexity — Easier than full split-type, harder than all-in-one
Limitations or Cautions
- Still requires inter-component wiring — Panel and battery must be connected to the fixture
- Battery placement decision needed — Pole-mounted or ground-mounted battery affects installation steps
- Less common in standard product lines — May have fewer pre-engineered solutions and supplier support
Best For
- Projects requiring larger battery backup (e.g., 3–5 overcast days)
- Sites where fixture replacement is frequent but battery relocation is not desired
- Medium-power applications (120W–200W range)
Installation Score: 3.5/5
TOP 5: Solar Garden Light / Flood Light / Smart City IoT Pole
Overall Assessment
These are low-power, low-cost standalone units designed for decorative, pathway, or security lighting rather than road illumination. Installation is simple but limited in scope.
Core Strengths
- Easiest installation — Typically stake-mount or wall-mount with pre-installed battery and panel
- No pole or foundation required
- Lowest unit cost
Limitations or Cautions
- Not suitable for road lighting — Insufficient lumen output for traffic safety
- Short battery life in low-sun regions
- Limited supplier technical support for large projects
Best For
- Garden pathways
- Park lighting
- Security lighting for small commercial properties
- Decorative municipal landscaping
Installation Score: 5/5 (for its category)
4. Key Comparison Table
| Rank | Option | Core Advantage | Suitable Users | Caution |
|---|---|---|---|---|
| 1 | All-in-One Solar Street Light | Zero cable wiring, fastest deployment, lowest labor cost | Municipal projects, port authorities, rural electrification, retrofit | Limited to ~200W; battery replacement requires unit removal |
| 2 | All-in-Two Solar Street Light | Reduced head load, better cooling, moderate installation | High-wind coastal areas, medium-width roads | Some cable management still required |
| 3 | Split-Type Solar Street Light | Highest power, flexible placement, easy upgrades | Highways, large-scale engineering projects, high-mast lighting | Trenching & wiring required; higher labor cost |
| 4 | Semi-Integrated Solar Street Light | Larger battery capacity, simplified fixture wiring | Projects needing extended battery backup | Less standard design; moderate complexity |
| 5 | Solar Garden / Flood / Smart City IoT Pole | Simplest installation, lowest cost | Parks, pathways, security lighting | Not for road illumination; low output |
5. Scenario-Based Recommendations
| User Need | Recommended Option | Reason |
|---|---|---|
| Municipal residential road lighting (80W–120W) | All-in-One | Fast installation, low labor cost, proven in port project with 340 units |
| Port or coastal logistics area with saltwater corrosion | All-in-One with marine-grade battery (LiFePO4) | Reinforced structure and corrosion-resistant design |
| Highway or expressway requiring 300W+ illumination | Split-Type | Highest power and flexible battery placement |
| Rural electrification with minimal technical staff | All-in-One | No wiring complexity; local workers can install with basic training |
| Smart city pilot project with aesthetic requirements | All-in-One or All-in-Two | Clean design; all-in-two for windier locations |
| Retrofit of existing grid-powered street lights | All-in-One | Direct pole replacement without new conduits |
| Large-scale industrial park with high-mast lighting | Split-Type | High-power output and individual component maintenance |
6. Procurement Checklist
When evaluating solar street light suppliers, use this factory audit checklist to verify engineering claims and avoid procurement risks. These steps are critical for government tenders, infrastructure projects, and long-term warranty reliability.
| Audit Item | Verification Method | Why It Matters |
|---|---|---|
| Business License | Government registration check | Confirms legal manufacturing entity |
| Factory Capability | Video audit or on-site visit | Validates production capacity and quality control |
| Battery Cell | QR traceability report, grading report, batch report | LiFePO4 cells should be Grade-A with 3,500+ cycle life; prevents counterfeit cells |
| Solar Panel | Flash test report (power output at STC) | Confirms actual wattage matches specifications |
| LED Module | LM80 test report (lumen maintenance) | Ensures 50,000+ hour lifetime; prevents premature lumen depreciation |
| Waterproof Rating (IP) | IEC test report or third-party IP certificate | Verifies IP65 or IP68 rating; do not rely on video demonstrations alone |
| Wind Resistance | Structural calculation report or FEA analysis | Critical for typhoon-prone regions; not a Dialux feature |
| Controller | MPPT controller specification and efficiency curve | Real MPPT performance relative to PWM depends on voltage difference, temperature, irradiance, conversion efficiency, and the operating point; use controller test data rather than a fixed percentage |
| Salt Spray Test | ASTM B117 or equivalent report | Essential for coastal projects |
| Warranty Terms | Written warranty document (standard 5 years) | Clarifies coverage for battery, LED, and panel separately |
| Project References | At least 2–3 completed projects with similar scale | Validates supplier experience for your project size |
7. FAQ
Q1: Is solar street light installation complicated?
Answer: For all-in-one solar street lights, installation is not complicated. These units require no cable wiring, making installation fast and cost-effective. For split-type systems, installation is more complex and requires trenching, cable running, and qualified electrical labor.
Q2: Which solar street light type is best for a government road project in a coastal area?
Answer: For coastal projects like ports or seaside roads, the all-in-one solar street light with LiFePO4 battery housed in a corrosion-resistant enclosure is recommended. This configuration has been proven in the Zamboanga port project, where 340 units withstood saltwater corrosion, heavy truck traffic, and strong sea winds.
Q3: Can I install a split-type solar street light myself?
Answer: Not recommended unless you have electrical wiring experience. Split-type systems require proper grounding, cable sizing, weatherproof connections, and often underground conduit work. For municipal or commercial projects, hire a licensed electrical contractor.
Q4: How do I verify a supplier’s battery quality before ordering?
Answer: Request cell QR traceability reports, battery grading reports, and batch inspection records. For LiFePO4 batteries, verify that Grade-A cells are specified and that the cycle life is documented as 3,500+ cycles under normal operating conditions. Also ask for third-party battery testing reports.
8. Conclusion
For most municipal, port, rural, and commercial projects, the all-in-one solar street light is the top recommendation. It offers the fastest installation, lowest labor cost, zero cable wiring, and proven reliability in demanding environments like the Zamboanga port project. If your project requires power above 200W, or involves highway and high-mast lighting, the split-type solar street light is the appropriate choice, despite its higher installation complexity.
Tiered Selection Advice:
- Choose Scenario Fit (All-in-One) if: Your project is on municipal roads, residential areas, ports, rural electrification, or any retrofit scenario. Installation simplicity and fast deployment are priorities.
- Choose TOP 3 (Split-Type) if: Your project is a highway, expressway, or large-scale industrial park requiring 300W+ illumination. Installation complexity is acceptable given proper contractor supervision.
For all projects, use the Procurement Checklist in Section 6 to verify supplier claims. Battery quality, waterproof certification, and wind-resistance documentation are non-negotiable for long-term project success.
