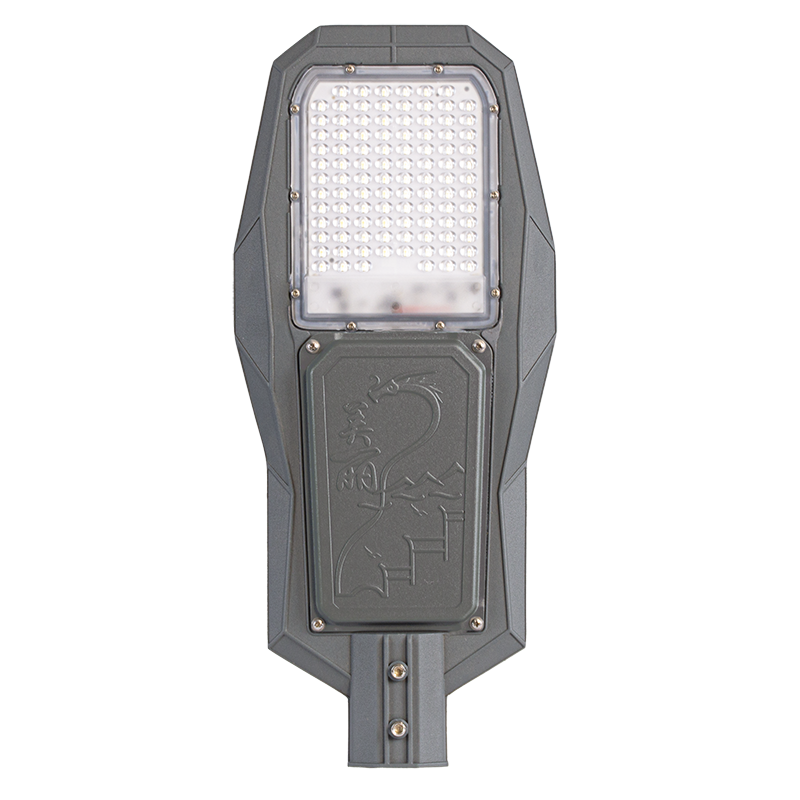

MCL Solar M-Series Split Type Solar Street Light
Factory Model: M25 (25W) & M35 (35W)
Hidden Wire Design | Die-Cast Aluminum | LiFePO4 Battery | IP65 Waterproof
The ideal anti-corrosion solar lighting solution for rural roads and coastal areas.
Product Details & Models
Flexible Installation & Project Case
Supports both Pole Mounting (4-6m height) and Wall Mounting. The best choice for rural village roads, gardens, and building facades in Philippines and Nigeria.
Project Case: Philippines Village Road
"The M35 is perfect for our village roads. The hidden wire design is brilliant—it prevents damage from rats and heavy rain. Installation was fast on our existing 5-meter concrete poles."
- Government Project Contractor, Philippines
Technical Specifications
| Specification | Model M25 | Model M35 |
|---|---|---|
| Solar Panel | 25W Mono-Crystalline | 35W Mono-Crystalline |
| Battery Type | 25,000mAh (LiFePO4) | 30,000mAh (LiFePO4) |
| Luminous Flux | 2500 - 3000 Lumens | 3500 - 4000 Lumens |
| Housing Material | Die-Cast Aluminum + PC Lens (Anti-UV) | |
| Cable Design | Hidden Wire inside the bracket arm | |
| Warranty | 3 Years / 5 Years (Factory Direct) | |

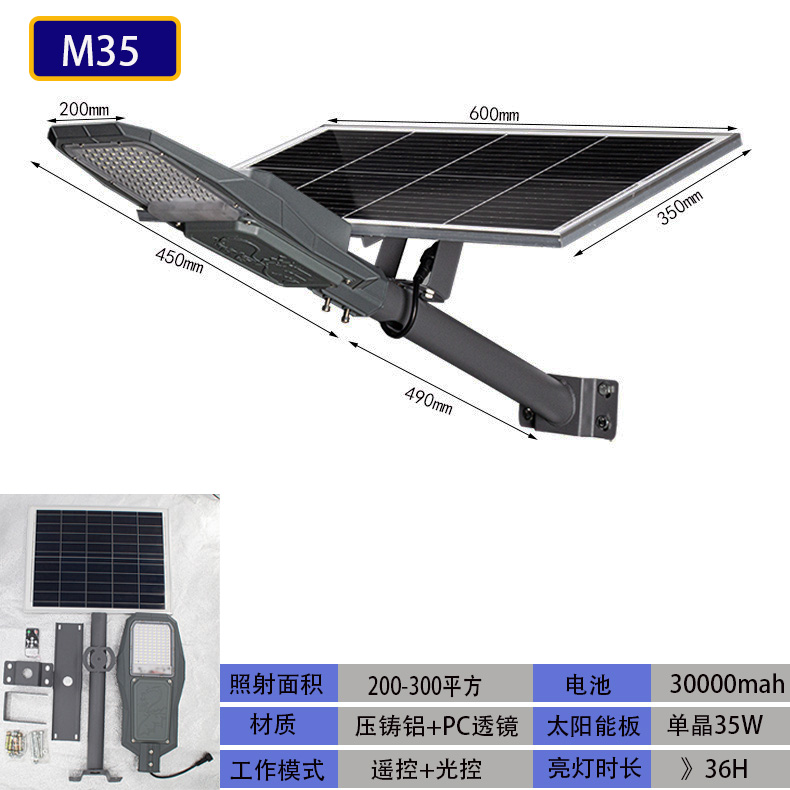

Product Dimension Drawing
FAQ for Wholesalers & Contractors
Q: What is the advantage of the Hidden Wire Design?
The M-Series Split Type Solar Street Light features a unique hidden wire design where the cable between the panel and lamp runs inside the bracket arm. This protects the cable from UV damage, rain, and animal bites, significantly extending the lifespan compared to exposed wire models.
Q: How much shipping space can this design save?
Thanks to the compact split design, the M-Series saves up to 30% of shipping volume compared to traditional integrated lights. The solar panel and lamp body fit perfectly in the packaging, allowing you to load more units in a 20GP/40HQ container.
Q: Can I customize the brand (OEM)?
Yes, as a Zhongshan Manufacturer, MCL Solar provides full OEM services. We can laser engrave your logo on the aluminum housing and design customized color boxes to help you build your brand in the local market.
Q: How does the battery perform in rainy days?
We use high-capacity Brand New LiFePO4 batteries with over 2000 cycles. The system is programmed to support 3-5 rainy days backup, ensuring reliable lighting even during the monsoon season in Southeast Asia or Africa.
