HIGH POWER SPLIT SOLAR STREET LIGHT
150W – 500W
Engineered for Highway Projects | Philips 5054/7070 LEDs | MPPT Smart Control | Factory Direct Customization
Why MCL Split Series Dominates
High Efficiency Panel
21% Efficiency Mono-Crystalline Panel (200W-600W Customizable)
LiFePO4 System
Brand New BYD/CATL Cells. >2000 Cycles. High Voltage 12.8V/25.6V.
Philips 5054/7070
Ultra-high brightness up to 220 lm/W. 100,000hrs Lifespan.
Smart MPPT
Tracking Efficiency ≥99.5%. Supports IoT / Zigbee / LoRaWAN.
3-5 Years Warranty
Full system replacement warranty. ISO9001 Certified Factory.
Project Capacity
50,000+ Sets/Year. Direct from Zhongshan High-Tech Factory.

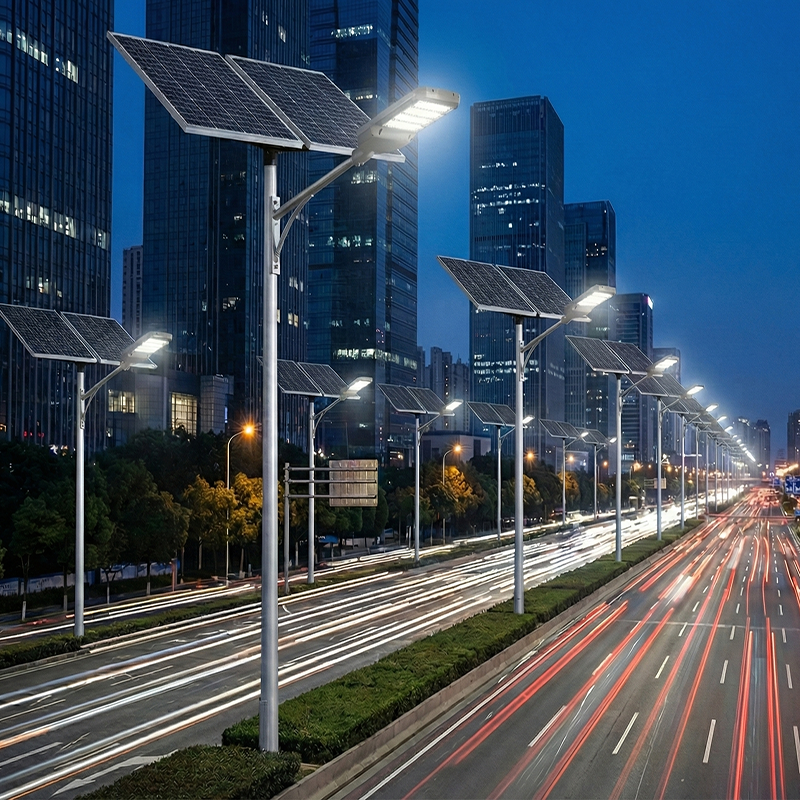

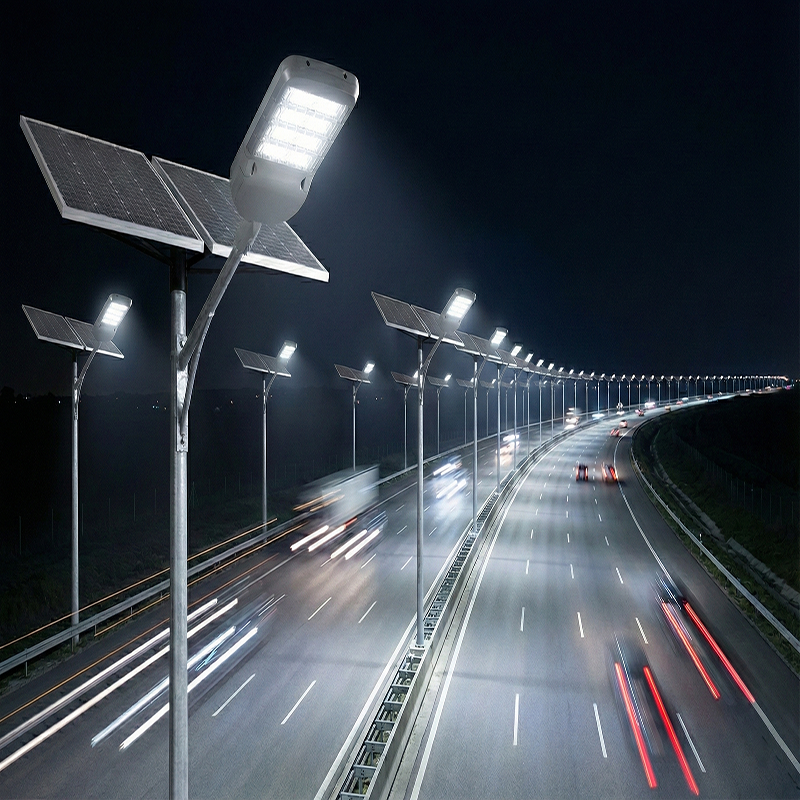

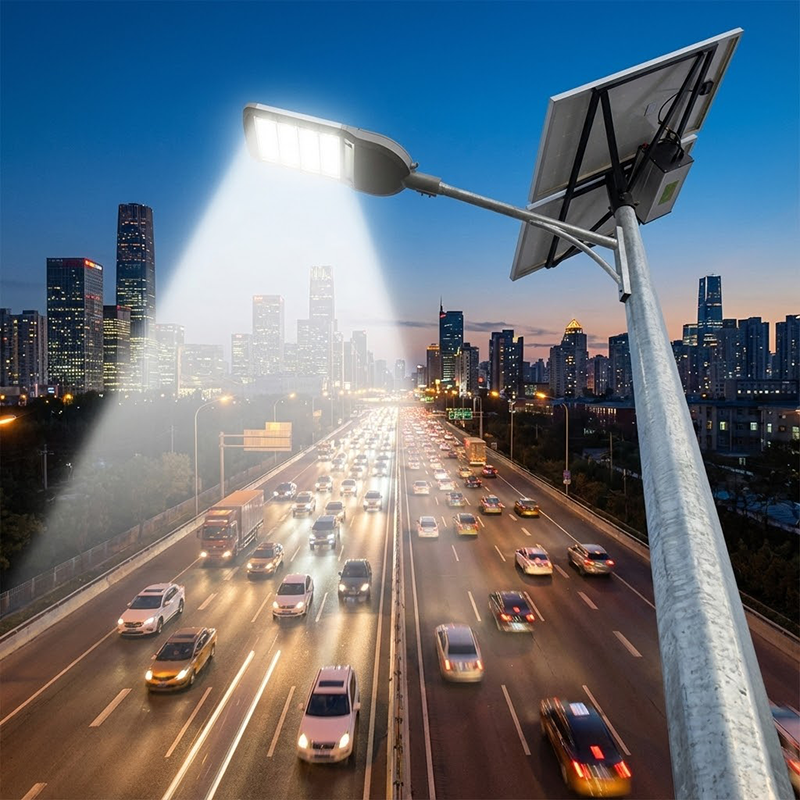

Real Highway Project Gallery
Technical Specifications
| Parameter | Range | 200W Config | 300W Config | 400W/500W Config |
|---|---|---|---|---|
| Application | Highway / Main Road | City Road | Main Road | Highway |
| Pole Height | 8m - 15m | 8m - 10m | 10m - 12m | 12m - 15m (High Mast) |
| LED Chip | Philips 5054/7070 | 5054 (160pcs) | 5054/7070 | Philips 7070 |
| Luminous Flux | Up to 110,000lm | 36,000 lm | 54,000 lm | 72,000 - 90,000 lm |
| Solar Panel | Mono-Crystalline | 280W / 36V | 420W / 36V | 550W / 36V |
| Battery | LiFePO4 (New) | 25.6V 60Ah | 25.6V 100Ah | 51.2V 100Ah |
| Controller | MPPT (IoT Optional) | 20A | 20A | 30A |
| Warranty | 3-5 Years | 5 Years | 5 Years | 5 Years |
← Swipe to view full specification table →
Frequently Asked Questions
Q1 Why choose split type for high power projects?
The Split Type Solar Street Light allows for independent customization of the solar panel and battery size. For high-power (200W-500W) lights, we need large solar panels (300W-600W) to fully charge the battery, which All-in-One designs cannot support due to size limitations.
Q2 Is this suitable for Highways?
Yes, absolutely. This series is designed for Highway and Main Road lighting. We use high-voltage (25.6V/51.2V) systems to reduce transmission loss and Philips 5054/7070 chips for maximum brightness, suitable for pole heights of 10m-15m.
Q3 How long is the warranty?
We provide a 3-5 Year Warranty. As a factory in Zhongshan, we use Grade A LiFePO4 batteries (>2000 cycles) and IP67 waterproof controllers. If any component fails, we provide free replacements immediately.
Q4 Can you provide Dialux simulation?
Yes. Send us your project details (road width, pole height, spacing). Our engineering team will provide a Free DIALux Simulation Report to verify the lux levels meet your government standards.
Q5 What is the MOQ?
For this high-power engineering series, our MOQ is flexible. 1 unit sample is welcome for testing. For bulk orders, we offer volume discounts.
Q6 How many rainy days can it support?
Standard configuration supports 3-5 continuous rainy days. For critical areas, we can customize the battery capacity to support up to 7-10 days backup.
